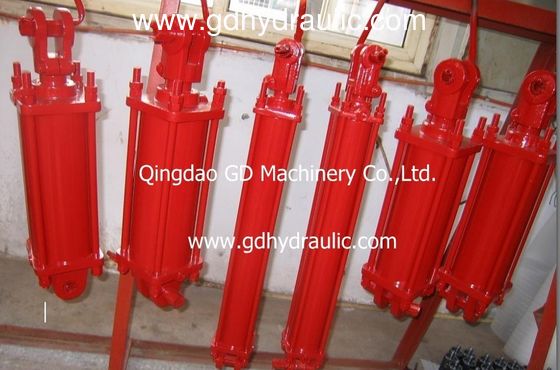

Tie rod hydraulic cylinder for agricultural equipment
Standard type
Features:
Ductile iron piston
Ductile iron gland, drilled oil passages.
Honed steel tube. precision finished for extended seal life.
High tensile, hard chrome plated rod.
Ductile Iron end mounts, female clevises with pins and clips included.
| Part no. | Bore size | Stroke | Rod | Column | Estimate |
| load | ship Wt.(lbs.) | ||||
| 2T2008 | 2" | 8" | 1 1/8" | 2500PSI | 19.1 |
| 2T2508 | 2.5" | 8" | 1 1/8" | 2500PSI | 22.5 |
| 2T3008 | 3" | 8" | 1 1/4" | 2500PSI | 26.7 |
| 2T3016 | 3" | 16" | 1 3/8" | 2500PSI | 24.5 |
| 2T3508 | 3.5" | 8" | 1 1/4" | 2500PSI | 36.0 |
| 2T3516 | 3.5" | 16" | 1 1/2" | 2500PSI | 46.1 |
| 2T4008 | 4" | 8" | 1 1/2" | 2500PSI | 38.0 |
| 2T4016 | 4" | 16" | 1 3/4" | 2500PSI | 55.2 |
| 2T5008 | 5" | 8" | 1 1/2" | 2500PSI | 48.5 |
| 2T5016 | 5" | 16" | 2" | 2500PSI | 63.8 |
Gland
-- High grade ductile iron
Piston
-- High grade precisely machined ductile iron
Tube
-- Cold Drawn tubing with precision skived
Piston seal
-- O-ring supported by Teflon coating
Tube Seal
-- O-Ring with anti-extrusion backup washer
Piston Wear Ring (only for 3T series)
-- Glass fiber with nylon(only for 3T series)
Tie rod
-- High tense steel
Rod wiper
-- Metal encased NBR
Rod
-- Chrome Plated C1045 Steel
Rod Seal
-- Polyurethane U-Cup
Rod clevis
-- Ductile iron
Ports
-- NPTF for 2T, SAE ORB for 3T
End caps
-- C1045 Steel
