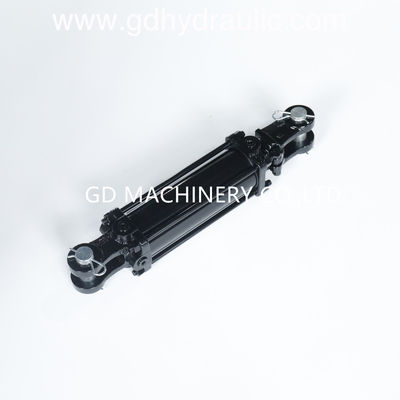

Standard hydraulic cylinder rod clevis: QT500 Tie-rod hydraulic cylinder

Large Image : Standard hydraulic cylinder rod clevis: QT500 Tie-rod hydraulic cylinder Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	GD
Certification:	ISO ROSH CE
Model Number:	tie-rod cylinder TR3008

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	30-50$
Packaging Details:	Polywood Case /Metal Case
Delivery Time:	25 work days
Payment Terms:	T/T LC
Supply Ability:	30000per month

Contact Now

Detailed Product Description

Clevis Material:	Cast SAE 5506	Seals:	Hallite
Structure:	Piston Type	Working Pressure:	3000PSI
Warranty:	12 Months	Acting Way:	Double Acting
Bore:	2” 2.5” 3” 3.5" 4" 4.5" 5"	Stroke:	4"~72"
Product Name:	Piston Rod For Hydraulic Cylinder,tie Rod Hydraulic Cylinder	Application:	Heavy Duty Tasks
Name:	Hydraulic Cylinder Hard Chrome Plated Piston Rod	Color:	As Customer's Requirement
Surface Treatment:	Chrome Plating	Size:	As Clients' Drawings,As Per Drawings,According To Your Drawing
Chrome Thickness:	20-30μm(min) Or According To Customer's Requirement	Sample:	Support,sample Available
Power:	Hydraulic

Standard Tie rod Hydraulic Cylinder
TR2008ASAE TR3008ASAE TR4008ASAE

Standard hydraulic cylinder rod clevis: QT500 Tie-rod hydraulic cylinder 0

Specificattions:

Part Number	Rod Dia.	Bore x Stroke	Dimensions		Port Size	Pin Size	Weight (lbs)
Part Number	Rod Dia.	Bore x Stroke	Retracted	Extended	Port Size	Pin Size	Weight (lbs)
GD TR25-2004	1 1/8''	2''*4''	14 1/4''	18 1/4''	3/8NPT	1''	15
TR25-2006		2''*6''	16 1/4''	22 1/4''			16
TR25-2008		2''*8''	18 1/4''	26 1/4''			18
TR25-2008-ASAE		2''*8''	20 1/4''	28 1/4''			19
TR25-2010		2''*10''	20 1/4''	30 1/4''			19
TR25-2012		2''*12''	22 1/4''	34 1/4''			20
TR25-2014		2''*14''	24 1/4''	38 1/4''			22
TR25-2016		2''*16''	26 1/4''	42 1/4''			24
TR25-2018		2''*18''	28 1/4''	46 1/4''			26
TR25-2020		2''*20''	30 1/4''	50 1/4''			27
TR25-2024		2''*24''	34 1/4''	58 1/4''			30
TR25-2030		2''*30''	40 1/4''	70 1/4''			35
TR25-2036		2''*36''	46 1/4''	82 1/4''			40
TR25-2504	1 1/8''	2.5''*4''	14 1/4''	18 1/4''	3/8NPT	1''	18
TR25-2506		2.5''*6''	16 1/4''	22 1/4''			20
TR25-2508		2.5''*8''	18 1/4''	26 1/4''			22
TR25-2508-ASAE		2.5''*8''	20 1/4''	28 1/4''			22
TR25-2510		2.5''*10''	20 1/4''	30 1/4''			23
TR25-2512		2.5''*12''	22 1/4''	34 1/4''			25
TR25-2514		2.5''*14''	24 1/4''	38 1/4''			27
TR25-2516		2.5''*16''	26 1/4''	42 1/4''			28
TR25-2518		2.5''*18''	28 1/4''	46 1/4''			29
TR25-2520		2.5''*20''	30 1/4''	50 1/4''			31
TR25-2524		2.5''*24''	34 1/4''	58 1/4''			35
TR25-2530		2.5''*30''	40 1/4''	70 1/4''			45
TR25-2536		2.5''*36''	46 1/4''	82 1/4''			50
TR25-3004	1 1/4''	3''*4''	14 1/4''	18 1/4''	1/2NPT	1''	22
TR25-3006		3''*6''	16 1/4''	22 1/4''			24
TR25-3008		3''*8''	18 1/4''	26 1/4''			26
TR25-3008-ASAE		3''*8''	20 1/4''	28 1/4''			27
TR25-3010		3''*10''	20 1/4''	30 1/4''			28
TR25-3012		3''*12''	22 1/4''	34 1/4''			31
TR25-3014		3''*14''	24 1/4''	38 1/4''			33
TR25-3016		3''*16''	26 1/4''	42 1/4''			35
TR25-3016-ASAE		3''*16''	31 1/4''	47 1/4''		1 1/4''	38
TR25-3018	1 1/2''	3''*18''	28 1/4''	46 1/4''		1''	42
TR25-3020		3''*20''	30 1/4''	50 1/4''			44
TR25-3024		3''*24''	34 1/4''	58 1/4''			49
TR25-3030		3''*30''	40 1/4''	70 1/4''			58
GD-TR25-3036		3''*36''	46 1/4''	82 1/4''			67
TR25-3504	1 1/4''	3.5''*4''	14 1/4''	18 1/4''	1/2NPT	1''	29
TR25-3506		3.5''*6''	16 1/4''	22 1/4''			30
TR25-3508		3.5''*8''	18 1/4''	26 1/4''			34
TR25-3508-ASAE		3.5''*8''	20 1/4''	28 1/4''			35
TR25-3510		3.5''*10''	20 1/4''	30 1/4''			37
TR25-3512		3.5''*12''	22 1/4''	34 1/4''			39
TR25-3514		3.5''*14''	24 1/4''	38 1/4''			42
TR25-3516		3.5''*16''	26 1/4''	42 1/4''			44
TR25-3516-ASAE	1 1/2''	3.5''*16''	31 1/4''	47 1/4''		1 1/4''	50
TR25-3518	1 1/4''	3.5''*18''	28 1/4''	46 1/4''		1''	47
TR25-3520	1 1/4''	3.5''*20''	30 1/4''	50 1/4''			49
TR25-3524	1 1/2''	3.5''*24''	34 1/4''	58 1/4''			58
TR25-3530		3.5''*30''	40 1/4''	70 1/4''			70
TR25-3536		3.5''*36''	46 1/4''	82 1/4''			72
TR25-4004	1 1/4''	4''*4''	14 1/4''	18 1/4''	1/2NPT	1''	33
TR25-4006		4''*6''	16 1/4''	22 1/4''			36
TR25-4008		4''*8''	18 1/4''	26 1/4''			39
TR25-4008-ASAE		4''*8''	20 1/4''	28 1/4''			41
TR25-4010		4''*10''	20 1/4''	30 1/4''			42
TR25-4012		4''*12''	22 1/4''	34 1/4''			45
GD-TR25-4014		4''*14''	24 1/4''	38 1/4''			47
TR25-4016		4''*16''	26 1/4''	42 1/4''			49
TR25-4016-ASAE	2''	4''*16''	31 1/4''	47 1/4''		1 1/4''	63
TR25-4018	1 1/2''	4''*18''	28 1/4''	46 1/4''		1''	55
TR25-4020		4''*20''	30 1/4''	50 1/4''			58
TR25-4024-150		4''*24''	34 1/4''	58 1/4''			64
TR25-4024-175	1 3/4''	4''*24''	34 1/4''	58 1/4''			68
TR25-4024-200	2''	4''*24''	34 1/4''	58 1/4''			73
TR25-4030		4''*30''	40 1/4''	70 1/4''			84
TR25-4036		4''*36''	46 1/4''	82 1/4''			95
TR25-5004	1 1/2''	5''*4''	16 1/4''	20 1/4''	1/2NPT	1''	53
GD-TR25-5006		5''*6''	18 1/4''	24 1/4''			55
TR25-5008		5''*8''	20 1/4''	28 1/4''			64
TR25-5010		5''*10''	22 1/4''	32 1/4''			68
TR25-5012	2''	5''*12''	24 1/4''	36 1/4''			77
TR25-5014		5''*14''	26 1/4''	40 1/4''			82
TR25-5016		5''*16''	28 1/4''	44 1/4''			87
TR25-5016-ASAE		5''*16''	31 1/4''	47 1/4''		1 1/4''	90
TR25-5018		5''*18''	30 1/4''	48 1/4''		1''	92
TR25-5020		5''*20''	32 1/4''	52 1/4''			96
TR25-5024		5''*24''	36 1/4''	60 1/4''			106
TR25-5030		5''*30''	42 1/4''	72 1/4''			121
GD-TR25-5036		5''*36''	48 1/4''	84 1/4''			136

PART NUMBER

INSIDER DIAMETER

OUTSIDER DIAMETER

ROD THREAD

PORT

TR2.5-20-

2.00"

2.37"

10.25"

2.00"

1.01"

2.00"

3.75"

2.25n

1.12"

2.06"

2.12"

2.62"

1.125-12 UNF

3/8-NPT

TR2.5-25-

2.50"

2.87"

10.25"

2.00"

1.01"

2.25"

3.75"

2.25"

1.12"

2.06"

2.12"

2.62"

1.125-12 UNF

3/8-NPT

TR2.5-30-

3.00"

3.37"

10.25"

2.00"

1.01"

2.25"

3.75"

2.25"

1.12"

2.06"

2.12"

2.62"

1.250-12 UNF

1/2-NPT

TR2.5-35-

3.50"

3.87"

10.25"

2.00"

1.01"

2.25"

3.62"

2.50"

1.12"

2.06"

2.12"

2.62"

1.250-12 UNF

1/2-NPT

TR2.5-40-

4.00"

4.37"

10.25"

2.25"

1.01"

2.25"

3.56"

2.62"

1.12"

2.06"

2.12"

2.62"

1.250-12 UNF

1/2-NPT

TR2.5-50-

5.00"

5.37"

12.25"

2.87"

1.26"

2.75"

4.18"

3.50"

1.12"

2.25"

2.12"

3.31"

1.500-12 UNF

1/2-NPT

*FOR 8.00" ASAE STROKE :*A= 12.25n AND FOR 16.00" ASAE STROKE:*A= 15.50"

*FOR 8.00" STROKE :*E= 5.75"(2.0(T TO 3.00" BORE) *E= 5.62n(3.50" BORE) *E = 5.56"(4.0(T BORE)

*FOR 16.00" ASAE STROKE: *E = 9.00"(2.00" TO 3.00B BORE) *E = 8.87"(3.50" BORE) *E = 8.81"(4.00" BORE)

*FOR TTR2.5-2518 TO TTR2.5-2536: ROD THREAD= 1.125-12 UNF

*FOR TTR2.5-4016-ASAE TO TR2.5-4036:*D= 2.50" *J = 2.75" *RODTHREAD= 1.500-12 UNF

*FOR 16.00'ASAE STROKE:*C = 1.26*

SEAL TEMPERATURE RANGE: -30°C/+100°C(-22°F/+212°F)

SEAL MAXIMUM SPEED:3 FT/SEC

MAXIMUM RETRACTED WORKING PRESSURE= 2500 PSI

DIMENSIONS A AND E ARE FOR REFERENCES ONLY AS CLEVIS IS ADJUSTABLE

Standard hydraulic cylinder rod clevis: QT500 Tie-rod hydraulic cylinder 2

Standard hydraulic cylinder rod clevis: QT500 Tie-rod hydraulic cylinder 3

Hydraulic cylinders can be built according to your drawings or technical requirement.
Sample order are acceptable.
