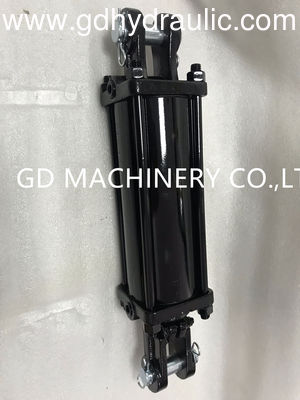

Standard Tie rod hydraulic cylinder TR3012 Bore3”Stroke 12”

Large Image : Standard Tie rod hydraulic cylinder TR3012 Bore3”Stroke 12” Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	GD
Certification:	ISO ROSH CE
Model Number:	GDTR3012

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	50
Packaging Details:	plywood or iron case
Delivery Time:	30days
Payment Terms:	T/T
Supply Ability:	10000 units per month

Contact Now

Detailed Product Description

Material:	SAE1035/SAE1045,CK45/ ST52/ 20MnV6/ 42CrMo4/ 40Cr/ Bearing Steel/ Stainless Steel	Application:	Hydraulic Cylinder,Heavy Duty Tasks,Machinery,Hydraulic Fittings
Surface Treatment:	Chrome Plating,Heat Treatment,Chrome Plated	Size:	As Clients' Drawings,As Per Drawings,Custom Made,According To Your Drawing
Chrome Thickness:	20-30μm(min) Or According To Customer's Requirement	Standard Or Nonstandard:	Standard
Power:	Hydraulic	Sample:	Sample Available
Pressure:	3000PSI	Action:	Double Acting
Type:	Tie Rod Hydraulic Cylinder	Oil Port:	NPT SAE
Rod:	Chrome QPQ	Warranty:	12 Months
Color:	Black Red

2500PSI / 3000 PSI Agriculture Standard Hydraulics Double Acting Hydraulic Cylinder - AG Tie-Rod Hydraulic Cylinder

Double acting applications
All seals are manufactured to US specification
100% hydraulic-pressure tested
ROD is hard chrome plated high-tensile steel, ground and polished
Honed steel tube precision finished
SAE ports available

Standard Tie rod hydraulic cylinder TR3012 Bore3”Stroke 12” 0

Part Number	Rod Dia.	Bore x Stroke	Dimensions		Port Size	Pin Size	Weight (lbs)
Part Number	Rod Dia.	Bore x Stroke	Retracted	Extended	Port Size	Pin Size	Weight (lbs)
TR30-2004	1 1/8''	2''*4''	14 1/4''	18 1/4''	3/8NPT & SAE#8	1''	18
TR30-2006		2''*6''	16 1/4''	22 1/4''			19
TR30-2008		2''*8''	18 1/4''	26 1/4''			20
TR30-2008-ASAE		2''*8''	20 1/4''	28 1/4''			20
TR30-2010		2''*10''	20 1/4''	30 1/4''			21
TR30-2012		2''*12''	22 1/4''	34 1/4''			25
TR30-2014		2''*14''	24 1/4''	38 1/4''			26
TR30-2016		2''*16''	26 1/4''	42 1/4''			28
TR30-2016-ASAE		2''*16''	31 1/4''	47 1/4''			28
TR30-2018		2''*18''	28 1/4''	46 1/4''			29
TR30-2020		2''*20''	30 1/4''	50 1/4''			31
TR30-2024		2''*24''	34 1/4''	58 1/4''			35
TR30-2030		2''*30''	40 1/4''	70 1/4''			39
TR30-2036		2''*36''	46 1/4''	82 1/4''			40
TR30-2040		2''*40''	50 1/4''	90 1/4''			43
TR30-2048		2''*48''	58 1/4''	106 1/4''			49
TR30-2504	1 1/4''	2.5''*4''	14 1/4''	18 1/4''	3/8NPT & SAE#8	1''	17
TR30-2506		2.5''*6''	16 1/4''	22 1/4''			22
TR30-2508		2.5''*8''	18 1/4''	26 1/4''			24
TR30-2508-ASAE		2.5''*8''	20 1/4''	28 1/4''			25
TR30-2510		2.5''*10''	20 1/4''	30 1/4''			26
TR30-2512		2.5''*12''	22 1/4''	34 1/4''			27
TR30-2514		2.5''*14''	24 1/4''	38 1/4''			29
TR30-2516		2.5''*16''	26 1/4''	42 1/4''			31
TR30-2516-ASAE		2.5''*16''	31 1/4''	47 1/4''			33
TR30-2518		2.5''*18''	28 1/4''	46 1/4''			34
TR30-2520		2.5''*20''	30 1/4''	50 1/4''			36
TR30-2524		2.5''*24''	34 1/4''	58 1/4''			39
TR30-2530		2.5''*30''	40 1/4''	70 1/4''			44
TR30-2536		2.5''*36''	46 1/4''	82 1/4''			46
TR30-2540		2.5''*40''	50 1/4''	90 1/4''			48
TR30-2548		2.5''*48''	58 1/4''	106 1/4''			55
TR30-3004	1 1/2''	3''*4''	14 1/4''	18 1/4''	1/2NPT & SAE#8	1''	23
TR30-3006		3''*6''	16 1/4''	22 1/4''			24
TR30-3008		3''*8''	18 1/4''	26 1/4''			27
TR30-3008-ASAE		3''*8''	20 1/4''	28 1/4''			32
TR30-3010		3''*10''	20 1/4''	30 1/4''			33
TR30-3012		3''*12''	22 1/4''	34 1/4''			33
TR30-3014		3''*14''	24 1/4''	38 1/4''			35
TR30-3016		3''*16''	26 1/4''	42 1/4''			39
TR30-3016-ASAE		3''*16''	31 1/4''	47 1/4''		1 1/4''	39
TR30-3018		3''*18''	28 1/4''	46 1/4''		1''	42
TR30-3020		3''*20''	30 1/4''	50 1/4''			45
TR30-3024		3''*24''	34 1/4''	58 1/4''			47
TR30-3030		3''*30''	40 1/4''	70 1/4''			53
TR30-3036		3''*36''	46 1/4''	82 1/4''			61
TR30-3040		3''*40''	50 1/4''	90 1/4''			63
TR30-3048		3''*48''	58 1/4''	106 1/4''			66
TR30-3504	1 3/8''	3.5''*4''	14 1/4''	18 1/4''	1/2NPT & SAE#8	1''	30
TR30-3506		3.5''*6''	16 1/4''	22 1/4''			33
TR30-3508		3.5''*8''	18 1/4''	26 1/4''			35
TR30-3508-ASAE		3.5''*8''	20 1/4''	28 1/4''			36
TR30-3510		3.5''*10''	20 1/4''	30 1/4''			37
TR30-3512		3.5''*12''	22 1/4''	34 1/4''			38
TR30-3514		3.5''*14''	24 1/4''	38 1/4''			41
TR30-3516		3.5''*16''	26 1/4''	42 1/4''			46
TR30-3516-ASAE		3.5''*16''	31 1/4''	47 1/4''		1 1/4''	46
TR30-3518		3.5''*18''	28 1/4''	46 1/4''		1''	47
TR30-3520		3.5''*20''	30 1/4''	50 1/4''			49
TR30-3524		3.5''*24''	34 1/4''	58 1/4''			54
TR30-3530		3.5''*30''	40 1/4''	70 1/4''			64
TR30-3536		3.5''*36''	46 1/4''	82 1/4''			66
TR30-3540		3.5''*40''	50 1/4''	90 1/4''			70
TR30-3548		3.5''*48''	58 1/4''	106 1/4''			73
TR30-4004	1 3/4''	4''*4''	14 1/4''	18 1/4''	1/2NPT & SAE#8	1''	41
TR30-4006		4''*6''	16 1/4''	22 1/4''			45
TR30-4008		4''*8''	18 1/4''	26 1/4''			49
TR30-4008-ASAE		4''*8''	20 1/4''	28 1/4''			50
TR30-4010		4''*10''	20 1/4''	30 1/4''			52
TR30-4012		4''*12''	22 1/4''	34 1/4''			56
TR30-4014		4''*14''	24 1/4''	38 1/4''			60
TR30-4016		4''*16''	26 1/4''	42 1/4''			64
TR30-4016-ASAE		4''*16''	31 1/4''	47 1/4''		1 1/4''	68
TR30-4018		4''*18''	28 1/4''	46 1/4''		1''	68
TR30-4020		4''*20''	30 1/4''	50 1/4''			72
TR30-4024		4''*24''	34 1/4''	58 1/4''			80
TR30-4030		4''*30''	40 1/4''	70 1/4''			92
TR30-4036		4''*36''	46 1/4''	82 1/4''			104
TR30-4040		4''*40''	50 1/4''	90 1/4''			116
TR30-4048		4''*48''	58 1/4''	106 1/4''			140
TR30-5004	2''	5''*4''	16 1/4''	20 1/4''	1/2NPT & SAE#10	1 1/4''	60
TR30-5006		5''*6''	18 1/4''	24 1/4''			63
TR30-5008		5''*8''	20 1/4''	28 1/4''			67
TR30-5010		5''*10''	22 1/4''	32 1/4''			71
TR30-5012		5''*12''	24 1/4''	36 1/4''			75
TR30-5014		5''*14''	26 1/4''	40 1/4''			80
TR30-5016		5''*16''	28 1/4''	44 1/4''			82
TR30-5016-ASAE		5''*16''	31 1/4''	47 1/4''			84
TR30-5018		5''*18''	30 1/4''	48 1/4''			90
TR30-5020		5''*20''	32 1/4''	52 1/4''			95
TR30-5024		5''*24''	36 1/4''	60 1/4''			100
TR30-5030		5''*30''	42 1/4''	72 1/4''			108
TR30-5036		5''*36''	48 1/4''	84 1/4''			118
TR30-5040		5''*40''	50 1/4''	90 1/4''			140
TR30-5048		5''*48''	60 1/4''	108 1/4''			161

PART NUMBER

INSIDER DIAMETER

OUYSIDER DIAMETER

ROD THREAD

PORT

TR3-20-

2.00"

2.50"

10.25"

2.00"

1.01"

2.00"

3.75"

2 2S"

1.12"

2.06"

2.12"

2.62"

1.125-12 UNF

SAE#8

TR3-25-

2.50"

3.00"

10.25"

2.00"

1.01"

2.00"

3.75"

2.25"

1.12"

2.06"

2.12"

2.62"

1.125-12 UNF

SAE#8

TR3-30-

3.00"

3.50"

10.25"

2.25"

1.01"

2.25"

3.75"

2.25"

1.12"

2.06"

2.12"

2.62"

1.250-12 UNF

SAE#8

TR3-35-

3.50"

4.00"

10.25"

2.50"

1.01"

2.50"

3.62"

2.62"

1.12"

2.06"

2.12"

2.75"

1.250-12 UNF

SAE#8

TR3-40-

4.00"

4.50"

10.25"

2.50"

1.01"

2.50"

3.56"

2.62"

1.12"

2.06"

2.12"

2.75"

1.250-12 UNF

SAE#8

TR3-50-

5.00"

5.50"

12.25"

2.87"

1.26"

2.75"

4.18"

3.50"

2.25"

2.12"

3.31"

1.500-12 UNF

SAE#10

*GD FOR 8.00" ASAE STROKE :*A= 12.25" AND FOR 16.00" ASAE STROKE:*A= 15.50"

*FOR 8.00" STROKE :*E= 5.75"(2.00" TO 3.00' BORE) *E= 5.62"(3.50" BORE) *E = 5.56'(4.00" BORE)

*FOR 16.00" ASAE STROKE: *E = 9.00"(3.00" BORE) *E = 8.87"(3.50" BORE) *E = 8.81"(4.00" BORE)*E = 7.43"(5.00" BORE)

*FOR 5.00" BORE: G(FRONT CLEVIS) = 1.18B" *G(END CAP) =1.31"

*FOR 16.00"ASAE STROKE:*C = 1.26"

SEAL TEMPERATURE RANGE: -30°C/ + 100°C(-22°F/+212°F)

SEAL MAXIMUM SPEED:3 FT/SEC GD

GD MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI

DIMENSIONS A AND E ARE FOR REFERENCES ONLY AS CLEVIS IS ADJUSTABLE
