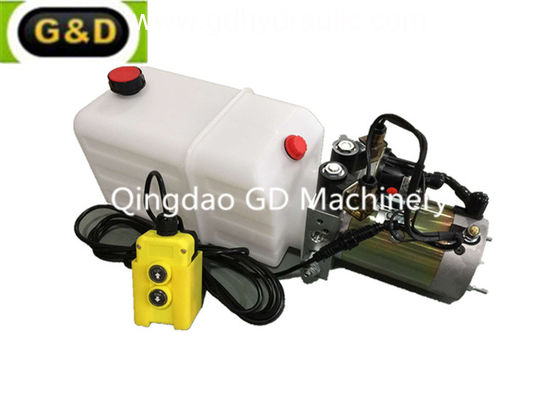

12v dc hydraulic power pack unit from china

12v dc hydraulic power pack unit from china

12v dc hydraulic power pack unit from china
12v dc hydraulic power pack unit from china 12v dc hydraulic power pack unit from china 12v dc hydraulic power pack unit from china 12v dc hydraulic power pack unit from china

Large Image :  12v dc hydraulic power pack unit from china Get Best Price

Product Details:
Place of Origin: China
Brand Name: GD
Certification: ISO ROSH CE
Model Number: HPU
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 150-200
Packaging Details: metalcase or plywoodcase
Delivery Time: 10 days
Payment Terms: T/T
Detailed Product Description
Standard Or Nonstandard: Standard Power: Hydraulic
Body Material: Steel Structure: Hydraulic Power Unit
Type: Hydraulic Power Units Product Name: Hydraulic Power Unit,hydraulic Power Pack 12V
Color: Customer Made Application: Multiple Industries,engneering,fork Lift,fishery,mini Lift Table Act.
Tank Capacity: 4L 6L 8L,1L-30L,5L System Pressure: 20MPa
Motor Power: 2KW,1hp 2hp 3hp 4hp,1.5kw Voltage: DC/AC Or Customized,DC12V 24V AC220V 380V,12v
Pressure: 16-25Mpa Flow: 2-8L/min
Name: Hydraulic Power Unit Pack,compact Hydraulic Power Unit 12v Motor Volt: 12V 24V 48V 60V 72V,24V
Tank Capacity(l): 8 Speed: 1400rpm; 2800rpm
Material: Aluminum Alloy/red Cooper /stainless Steel /carbon Steel Working Pressure: 3-26Mpa
Oem: Yes

Specification

· 1.6KW, 12vdc and 2.2KW, 24vdc electric motor complete with relay and plastic motor cover.

· A range of reservoirs complete with suction strainer and filler breather.

· Horizontal or vertical mounting options.

· Pressures of up to 200 bar and flows from 3 to 15 l/min.

· Two main relief valve options 40-100 bar and 100-200 bar.

· 12vdc and 24vdc lowering valve and P line check.

· Can be supplied suitable for all single and double acting applications.

· Push button pendants, isolators etc can be supplied as required.

·

While this pack has been designed with tippers in mind, derivatives can be used for other applications including:

·

o Tail lifts

o Passenger lifts

o Scissor lifts

o Forklifts

o Access lifts

o Agricultural applications

o Material handling equipment

We also design custom power packs to suit specific customer requirements.
