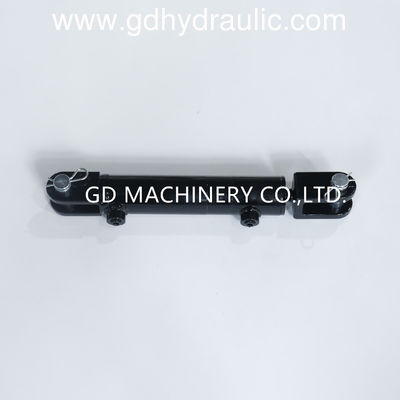

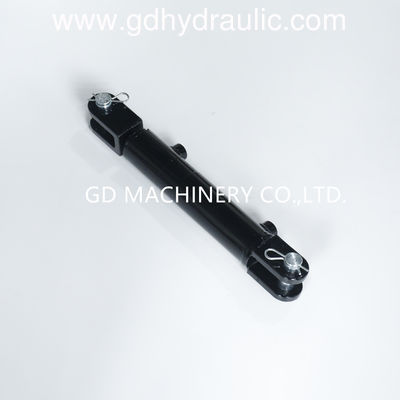

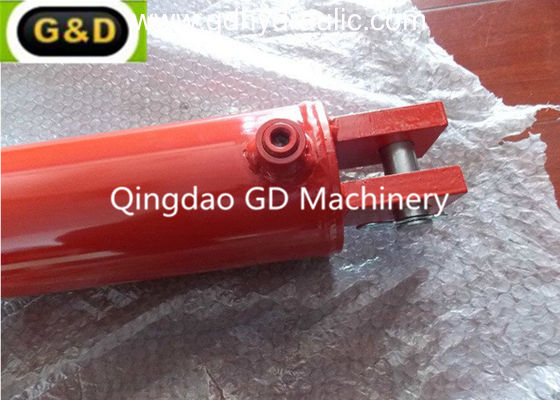

Standard double acting 3000PSI Welded Clevis hydraulic cylinder

Standard double acting 3000PSI Welded Clevis hydraulic cylinder
Standard double acting 3000PSI Welded Clevis hydraulic cylinder Standard double acting 3000PSI Welded Clevis hydraulic cylinder Standard double acting 3000PSI Welded Clevis hydraulic cylinder Standard double acting 3000PSI Welded Clevis hydraulic cylinder Standard double acting 3000PSI Welded Clevis hydraulic cylinder Standard double acting 3000PSI Welded Clevis hydraulic cylinder

Large Image :  Standard double acting 3000PSI Welded Clevis hydraulic cylinder Get Best Price

Product Details:
Place of Origin: China
Brand Name: GD
Certification: ISO ROSH CE 16949 SGS
Model Number: WCL3024
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 35-500usd
Packaging Details: Polywood Case /Metal Case
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 30000per month
Contact Now
Detailed Product Description
Power: Hydraulic Standard Or Nonstandard: Standard Or Nonstandard
Body Material: Steel Structure: Piston Cylinder
Applicable Industries: Manufacturing Plant,Machinery Repair Shops,Energy & Mining,Construction Works ,Farms Color: Client's Request
Product Name: Hydraulic Cylinder Working Pressure: 3000PSI
Maximum Stroke: Requirements Shaft Diameter: 12mm-500mm
Application: Agricultural,Vehicle,mining,Truck,bridge Warranty: One Year
Material: ST52/CK45/SAE4140/SS304/SS316 Condition: 100%new
Packing: Client's Request Seals: Hallite,Parker
Seal Kits: US Specification,MERKEL NOK HALLITE PARKER Type: Double Action
Bore: 1.5" To 8" Stroke: 4" To 190"

Standard double acting 3000PSI Welded Clevis hydraulic cylinder

1.5" welded clevis hydraulic cylinder     2.0" welded clevis hydraulic cylinder   2.5" welded clevis hydraulic cylinder

3.0" welded clevis hydraulic cylinder     3.5" welded clevis hydraulic cylinder    4.0" welded clevis hydraulic cylinder

5.0" welded clevis hydraulic cylinder     6.0" welded clevis hydraulic cylinder

  • Double-acting steel-welded design creates pressure up to 3000 PSI
  • 100% tested
  • Includes a polished chrome-plated rod and a two-year warranty

Standard double acting 3000PSI Welded Clevis hydraulic cylinder 0

Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
WCL30-1504 1'' 1.5''*4'' 14 1/4'' 18 1/4'' 3/8NPT 3/4'' 8
WCL30-1506 1.5''*6'' 16 1/4'' 22 1/4'' 9
WCL30-1508 1.5''*8'' 18 1/4'' 26 1/4'' 11
WCL30-1510 1.5''*10'' 20 1/4'' 30 1/4'' 12
WCL30-1512 1.5''*12'' 22 1/4'' 34 1/4'' 13
WCL30-1514 1.5''*14'' 24 1/4'' 38 1/4'' 14
WCL30-1516 1.5''*16'' 26 1/4'' 42 1/4'' 15
WCL30-1518 1.5''*18'' 28 1/4'' 46 1/4'' 17
WCL30-1520 1.5''*20'' 30 1/4'' 50 1/4'' 18
WCL30-1524 1.5''*24'' 34 1/4'' 58 1/4'' 20
WCL30-2004 1 1/4'' 2''*4'' 14 1/4'' 18 1/4'' 3/8NPT 1'' 14
WCL30-2006 2''*6'' 16 1/4'' 22 1/4'' 16
WCL30-2008 2''*8'' 18 1/4'' 26 1/4'' 18
WCL30-2010 2''*10'' 20 1/4'' 30 1/4'' 19
WCL30-2012 2''*12'' 22 1/4'' 34 1/4'' 21
WCL30-2014 2''*14'' 24 1/4'' 38 1/4'' 23
WCL30-2016 2''*16'' 26 1/4'' 42 1/4'' 25
WCL30-2018 2''*18'' 28 1/4'' 46 1/4'' 26
WCL30-2020 2''*20'' 30 1/4'' 50 1/4'' 28
WCL30-2024 2''*24'' 34 1/4'' 58 1/4'' 31
WCL30-2028 2''*28'' 38 1/4'' 66 1/4'' 35
WCL30-2030 2''*30'' 40 1/4'' 70 1/4'' 36
WCL30-2032 2''*32'' 42 1/4'' 74 1/4'' 38
WCL30-2034 2''*34'' 44 1/4'' 78 1/4'' 40
WCL30-2036 2''*36'' 46 1/4'' 82 1/4'' 42
WCL30-2040 2''*40'' 50 1/4'' 90 1/4'' 45
WCL30-2048 2''*48'' 58 1/4'' 106 1/4'' 52
WCL30-2504 1 1/2'' 2.5''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 18
WCL30-2506 2.5''*6'' 16 1/4'' 22 1/4'' 20
WCL30-2508 2.5''*8'' 18 1/4'' 26 1/4'' 24
WCL30-2510 2.5''*10'' 20 1/4'' 30 1/4'' 25
WCL30-2512 2.5''*12'' 22 1/4'' 34 1/4'' 27
WCL30-2514 2.5''*14'' 24 1/4'' 38 1/4'' 29
WCL30-2516 2.5''*16'' 26 1/4'' 42 1/4'' 32
WCL30-2518 2.5''*18'' 28 1/4'' 46 1/4'' 34
WCL30-2520 2.5''*20'' 30 1/4'' 50 1/4'' 36
WCL30-2524 2.5''*24'' 34 1/4'' 58 1/4'' 40
WCL30-2528 2.5''*28'' 38 1/4'' 66 1/4'' 45
WCL30-2530 2.5''*30'' 40 1/4'' 70 1/4'' 47
WCL30-2532 2.5''*32'' 42 1/4'' 74 1/4'' 49
WCL30-2534 2.5''*34'' 44 1/4'' 78 1/4'' 52
WCL30-2536 2.5''*36'' 46 1/4'' 82 1/4'' 54
WCL30-2540 2.5''*40'' 50 1/4'' 90 1/4'' 58
WCL30-2548 2.5''*48'' 58 1/4'' 106 1/4'' 67
WCL30-3004 1 1/2'' 3''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 22
WCL30-3006 3''*6'' 16 1/4'' 22 1/4'' 24
WCL30-3008 3''*8'' 18 1/4'' 26 1/4'' 27
WCL30-3010 3''*10'' 20 1/4'' 30 1/4'' 29
WCL30-3012 3''*12'' 22 1/4'' 34 1/4'' 31
WCL30-3014 3''*14'' 24 1/4'' 38 1/4'' 34
WCL30-3016 3''*16'' 26 1/4'' 42 1/4'' 36
WCL30-3018 3''*18'' 28 1/4'' 46 1/4'' 39
WCL30-3020 3''*20'' 30 1/4'' 50 1/4'' 41
WCL30-3024 3''*24'' 34 1/4'' 58 1/4'' 46
WCL30-3028 3''*28'' 38 1/4'' 66 1/4'' 51
WCL30-3030 3''*30'' 40 1/4'' 70 1/4'' 53
WCL30-3032 3''*32'' 42 1/4'' 74 1/4'' 56
WCL30-3034 3''*34'' 44 1/4'' 78 1/4'' 58
WCL30-3036 3''*36'' 46 1/4'' 82 1/4'' 61
WCL30-3040 3''*40'' 50 1/4'' 90 1/4'' 66
WCL30-3048 3''*48'' 58 1/4'' 106 1/4'' 75
WCL30-3504 1 3/4'' 3.5''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 27
WCL30-3506 3.5''*6'' 16 1/4'' 22 1/4'' 30
WCL30-3508 3.5''*8'' 18 1/4'' 26 1/4'' 35
WCL30-3510 3.5''*10'' 20 1/4'' 30 1/4'' 36
WCL30-3512 3.5''*12'' 22 1/4'' 34 1/4'' 39
WCL30-3514 3.5''*14'' 24 1/4'' 38 1/4'' 42
WCL30-3516 3.5''*16'' 26 1/4'' 42 1/4'' 46
WCL30-3518 3.5''*18'' 28 1/4'' 46 1/4'' 49
WCL30-3520 3.5''*20'' 30 1/4'' 50 1/4'' 52
WCL30-3524 3.5''*24'' 34 1/4'' 58 1/4'' 58
WCL30-3528 3.5''*28'' 38 1/4'' 66 1/4'' 64
WCL30-3530 3.5''*30'' 40 1/4'' 70 1/4'' 67
WCL30-3532 3.5''*32'' 42 1/4'' 74 1/4'' 70
WCL30-3534 3.5''*34'' 44 1/4'' 78 1/4'' 73
WCL30-3536 3.5''*36'' 46 1/4'' 82 1/4'' 76
WCL30-3540 3.5''*40'' 50 1/4'' 90 1/4'' 82
WCL30-3548 3.5''*48'' 58 1/4'' 106 1/4'' 94
WCL30-4004 2 4''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 33
WCL30-4006 4''*6'' 16 1/4'' 22 1/4'' 37
WCL30-4008 4''*8'' 18 1/4'' 26 1/4'' 42
WCL30-4010 4''*10'' 20 1/4'' 30 1/4'' 44
WCL30-4012 4''*12'' 22 1/4'' 34 1/4'' 48
WCL30-4014 4''*14'' 24 1/4'' 38 1/4'' 52
WCL30-4016 4''*16'' 26 1/4'' 42 1/4'' 55
WCL30-4018 4''*18'' 28 1/4'' 46 1/4'' 59
WCL30-4020 4''*20'' 30 1/4'' 50 1/4'' 63
WCL30-4024 4''*24'' 34 1/4'' 58 1/4'' 70
WCL30-4028 4''*28'' 38 1/4'' 66 1/4'' 77
WCL30-4030 4''*30'' 40 1/4'' 70 1/4'' 81
WCL30-4032 4''*32'' 42 1/4'' 74 1/4'' 85
WCL30-4034 4''*34'' 44 1/4'' 78 1/4'' 89
WCL30-4036 4''*36'' 46 1/4'' 82 1/4'' 92
WCL30-4040 4''*40'' 50 1/4'' 90 1/4'' 100
WCL30-4048 4''*48'' 58 1/4'' 106 1/4'' 114
WCL30-5004 2 1/2'' 5''*4'' 16 1/4'' 20 1/4'' 1/2NPT 1'' 64
WCL30-5006 5''*6'' 18 1/4'' 24 1/4'' 69
WCL30-5008 5''*8'' 20 1/4'' 28 1/4'' 74
WCL30-5010 5''*10'' 22 1/4'' 32 1/4'' 79
WCL30-5012 5''*12'' 24 1/4'' 36 1/4'' 84
WCL30-5014 5''*14'' 26 1/4'' 40 1/4'' 89
WCL30-5016 5''*16'' 28 1/4'' 44 1/4'' 95
WCL30-5018 5''*18'' 30 1/4'' 48 1/4'' 100
WCL30-5020 5''*20'' 32 1/4'' 52 1/4'' 105
WCL30-5024 5''*24'' 36 1/4'' 60 1/4'' 115
WCL30-5028 5''*28'' 40 1/4'' 68 1/4'' 125
WCL30-5030 5''*30'' 42 1/4'' 72 1/4'' 130
WCL30-5032 5''*32'' 44 1/4'' 76 1/4'' 136
WCL30-5034 5''*34'' 46 1/4'' 80 1/4'' 141
WCL30-5036 5''*36'' 48 1/4'' 84 1/4'' 146
WCL30-5040 5''*40'' 52 1/4'' 92 1/4'' 156
WCL30-5048 5''*48'' 60 1/4'' 108 1/4'' 177
  •
  •
  • This Welded Clevis Hydraulic Cylinder is double acting. It is all steel welded. These are commonly used in agricultural and construction industries but also for applications such as waste & recycling, OEM manufacturing of trailers, and metal fabricating.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us.





  • 100% tested.
