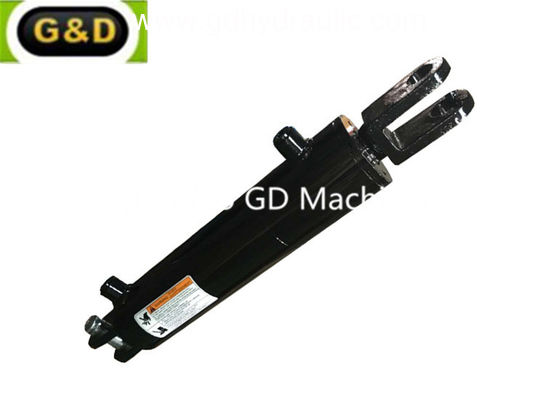

Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment

Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment
Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment

Large Image :  Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment Get Best Price

Product Details:
Place of Origin: China
Brand Name: GD
Certification: ISO CE
Model Number: HCW3010
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 50
Packaging Details: plywood or iron case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 10000 units per month
Contact Now
Detailed Product Description
Product Name: Welded Clevis Hydraulic Cylinder Color: Customerized
Cylinder Barrel: Hard Chrome Plating Oil Port: NPTF/SAE
Working Pressure: 2500/3000PSI Material: 45# Steel
Application: Agriculture Seal Kits: US Specification
Mounting Style: Pin Eye Mounting Action: Double Acting

Double Acting Welded Clevis Hydraulic Cylinder HCW3010 for Agriculture Equipment

Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment 0

  • About Welded Clevis Hydraulic Cylinder

Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment 1

Part Number Rod Dia. GD Bore x Stroke GD Dimensions Port Size G D Pin Size Weight (lbs)
Retracted Extended
WCL30-1504 1'' 1.5''*4'' 14 1/4'' 18 1/4'' 3/8NPT 3/4'' 8
WCL30-1506 1.5''*6'' 16 1/4'' 22 1/4'' 9
WCL30-1508 1.5''*8'' 18 1/4'' 26 1/4'' 11
WCL30-1510 1.5''*10'' 20 1/4'' 30 1/4'' 12
WCL30-1512 1.5''*12'' 22 1/4'' 34 1/4'' 13
WCL30-1514 1.5''*14'' 24 1/4'' 38 1/4'' 14
WCL30-1516 1.5''*16'' 26 1/4'' 42 1/4'' 15
WCL30-1518 1.5''*18'' 28 1/4'' 46 1/4'' 17
WCL30-1520 1.5''*20'' 30 1/4'' 50 1/4'' 18
WCL30-1524 1.5''*24'' 34 1/4'' 58 1/4'' 20
WCL30-2004 1 1/4'' 2''*4'' 14 1/4'' 18 1/4'' 3/8NPT 1'' 14
WCL30-2006 2''*6'' 16 1/4'' 22 1/4'' 16
GDWCL30-2008 2''*8'' 18 1/4'' 26 1/4'' 18
WCL30-2010 2''*10'' 20 1/4'' 30 1/4'' 19
WCL30-2012 2''*12'' 22 1/4'' 34 1/4'' 21
WCL30-2014 2''*14'' 24 1/4'' 38 1/4'' 23
WCL30-2016 2''*16'' 26 1/4'' 42 1/4'' 25
WCL30-2018 2''*18'' 28 1/4'' 46 1/4'' 26
WCL30-2020 2''*20'' 30 1/4'' 50 1/4'' 28
WCL30-2024 2''*24'' 34 1/4'' 58 1/4'' 31
WCL30-2028 2''*28'' 38 1/4'' 66 1/4'' 35
WCL30-2030 2''*30'' 40 1/4'' 70 1/4'' 36
WCL30-2032 2''*32'' 42 1/4'' 74 1/4'' 38
WCL30-2034 2''*34'' 44 1/4'' 78 1/4'' 40
WCL30-2036 2''*36'' 46 1/4'' 82 1/4'' 42
WCL30-2040 2''*40'' 50 1/4'' 90 1/4'' 45
WCL30-2048 2''*48'' 58 1/4'' 106 1/4'' 52
WCL30-2504 1 1/2'' 2.5''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 18
WCL30-2506 2.5''*6'' 16 1/4'' 22 1/4'' 20
WCL30-2508 2.5''*8'' 18 1/4'' 26 1/4'' 24
WCL30-2510 2.5''*10'' 20 1/4'' 30 1/4'' 25
WCL30-2512 2.5''*12'' 22 1/4'' 34 1/4'' 27
WCL30-2514 2.5''*14'' 24 1/4'' 38 1/4'' 29
WCL30-2516 2.5''*16'' 26 1/4'' 42 1/4'' 32
WCL30-2518 2.5''*18'' 28 1/4'' 46 1/4'' 34
WCL30-2520 2.5''*20'' 30 1/4'' 50 1/4'' 36
GD WCL30-2524 2.5''*24'' 34 1/4'' 58 1/4'' 40
WCL30-2528 2.5''*28'' 38 1/4'' 66 1/4'' 45
WCL30-2530 2.5''*30'' 40 1/4'' 70 1/4'' 47
WCL30-2532 2.5''*32'' 42 1/4'' 74 1/4'' 49
WCL30-2534 2.5''*34'' 44 1/4'' 78 1/4'' 52
WCL30-2536 2.5''*36'' 46 1/4'' 82 1/4'' 54
WCL30-2540 2.5''*40'' 50 1/4'' 90 1/4'' 58
WCL30-2548 2.5''*48'' 58 1/4'' 106 1/4'' 67
WCL30-3004 1 1/2'' 3''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 22
WCL30-3006 3''*6'' 16 1/4'' 22 1/4'' 24
WCL30-3008 3''*8'' 18 1/4'' 26 1/4'' 27
WCL30-3010 3''*10'' 20 1/4'' 30 1/4'' 29
WCL30-3012 3''*12'' 22 1/4'' 34 1/4'' 31
WCL30-3014 3''*14'' 24 1/4'' 38 1/4'' 34
WCL30-3016 3''*16'' 26 1/4'' 42 1/4'' 36
WCL30-3018 3''*18'' 28 1/4'' 46 1/4'' 39
WCL30-3020 3''*20'' 30 1/4'' 50 1/4'' 41
WCL30-3024 3''*24'' 34 1/4'' 58 1/4'' 46
WCL30-3028 3''*28'' 38 1/4'' 66 1/4'' 51
WCL30-3030 3''*30'' 40 1/4'' 70 1/4'' 53
WCL30-3032 3''*32'' 42 1/4'' 74 1/4'' 56
GD WCL30-3034 3''*34'' 44 1/4'' 78 1/4'' 58
WCL30-3036 3''*36'' 46 1/4'' 82 1/4'' 61
WCL30-3040 3''*40'' 50 1/4'' 90 1/4'' 66
WCL30-3048 3''*48'' 58 1/4'' 106 1/4'' 75
WCL30-3504 1 3/4'' 3.5''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 27
WCL30-3506 3.5''*6'' 16 1/4'' 22 1/4'' 30
WCL30-3508 3.5''*8'' 18 1/4'' 26 1/4'' 35
WCL30-3510 3.5''*10'' 20 1/4'' 30 1/4'' 36
WCL30-3512 3.5''*12'' 22 1/4'' 34 1/4'' 39
WCL30-3514 3.5''*14'' 24 1/4'' 38 1/4'' 42
WCL30-3516 3.5''*16'' 26 1/4'' 42 1/4'' 46
WCL30-3518 3.5''*18'' 28 1/4'' 46 1/4'' 49
WCL30-3520 3.5''*20'' 30 1/4'' 50 1/4'' 52
WCL30-3524 3.5''*24'' 34 1/4'' 58 1/4'' 58
WCL30-3528 3.5''*28'' 38 1/4'' 66 1/4'' 64
WCL30-3530 3.5''*30'' 40 1/4'' 70 1/4'' 67
WCL30-3532 3.5''*32'' 42 1/4'' 74 1/4'' 70
WCL30-3534 3.5''*34'' 44 1/4'' 78 1/4'' 73
WCL30-3536 3.5''*36'' 46 1/4'' 82 1/4'' 76
WCL30-3540 3.5''*40'' 50 1/4'' 90 1/4'' 82
WCL30-3548 3.5''*48'' 58 1/4'' 106 1/4'' 94
GD WCL30-4004 2 4''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 33
WCL30-4006 4''*6'' 16 1/4'' 22 1/4'' 37
WCL30-4008 4''*8'' 18 1/4'' 26 1/4'' 42
WCL30-4010 4''*10'' 20 1/4'' 30 1/4'' 44
WCL30-4012 4''*12'' 22 1/4'' 34 1/4'' 48
WCL30-4014 4''*14'' 24 1/4'' 38 1/4'' 52
WCL30-4016 4''*16'' 26 1/4'' 42 1/4'' 55
WCL30-4018 4''*18'' 28 1/4'' 46 1/4'' 59
WCL30-4020 4''*20'' 30 1/4'' 50 1/4'' 63
WCL30-4024 4''*24'' 34 1/4'' 58 1/4'' 70
WCL30-4028 4''*28'' 38 1/4'' 66 1/4'' 77
WCL30-4030 4''*30'' 40 1/4'' 70 1/4'' 81
WCL30-4032 4''*32'' 42 1/4'' 74 1/4'' 85
WCL30-4034 4''*34'' 44 1/4'' 78 1/4'' 89
WCL30-4036 4''*36'' 46 1/4'' 82 1/4'' 92
WCL30-4040 4''*40'' 50 1/4'' 90 1/4'' 100
WCL30-4048 4''*48'' 58 1/4'' 106 1/4'' 114
WCL30-5004 2 1/2'' 5''*4'' 16 1/4'' 20 1/4'' 1/2NPT 1'' 64
WCL30-5006 5''*6'' 18 1/4'' 24 1/4'' 69
WCL30-5008 5''*8'' 20 1/4'' 28 1/4'' 74
WCL30-5010 5''*10'' 22 1/4'' 32 1/4'' 79
WCL30-5012 5''*12'' 24 1/4'' 36 1/4'' 84
WCL30-5014 5''*14'' 26 1/4'' 40 1/4'' 89
WCL30-5016 5''*16'' 28 1/4'' 44 1/4'' 95
WCL30-5018 5''*18'' 30 1/4'' 48 1/4'' 100
WCL30-5020 5''*20'' 32 1/4'' 52 1/4'' 105
WCL30-5024 5''*24'' 36 1/4'' 60 1/4'' 115
WCL30-5028 5''*28'' 40 1/4'' 68 1/4'' 125
WCL30-5030 5''*30'' 42 1/4'' 72 1/4'' 130
WCL30-5032 5''*32'' 44 1/4'' 76 1/4'' 136
WCL30-5034 5''*34'' 46 1/4'' 80 1/4'' 141
WCL30-5036 5''*36'' 48 1/4'' 84 1/4'' 146
WCL30-5040 5''*40'' 52 1/4'' 92 1/4'' 156
WCL30-5048 5''*48'' 60 1/4'' 108 1/4'' 177
  • About Our Company

Qingdao GD Machinery Co., Ltd. is a specialized manufacturer and trader with main products: hydraulic cylinders, hydraulic power units, hydraulic manifolds-blocks, hydraulic flanges, pneumatic cylinders and custom-made components and parts, like industrial valves.
Our sales markets have covered our sales markets have covered North America, Europe, Australia and Japan.
Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment 2Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment 3




  • The Process Flow of Welded Clevis Hydraulic Cylinder

Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment 4

  • Our Package and Delivery of Welded Clevis Hydraulic Cylinder

Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment 5Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment 6

  • The Application of Welded Clevis Hydraulic Cylinder​

​Double Acting Welded Clevis Hydraulic Cylinder for Agriculture Equipment 7

  • The General Information of Welded Clevis Hydraulic Cylinder
Qingdao GD Machinery CO., LTD.
Product information
Product list Tie rod hydraulic cylinder, welded hydraulic cylinder, telescopic cylinders cylinder, flange type hydraulic cylinder, hydraulic cylinder with valve function, hydraulic power unit, Hydraulic manifold block, pneumatic fitting
Material

Tube — Cold Drawn Precision seamless Tubing
End Caps — Steel, threaded fixed
Wear Ring — Nylon Backup Washer
Rod Seals — Polyurethane U-Cap
Rod — Chromed, ground & polished piston rod
Mounts — Trunnion with angular Swivels
Rod Wiper — Polyurethane
Application

Agriculture, Concrete & Asphalt, Cranes, Fire & Rescue,
Forestry & Logging, Mining & Rock Crushing, Oil & Gas,
Snow & Ice Control,Waste Management and Material Recycling Industry,
Engineering Equipment, Special Vehicle
Feature

1. High quality with a reasonable price
2. ISO9001-2008
3. Customized specification are accepted
Payment T/T, L/C, WESTERN UNION.
Port Qingdao, China
Quotation According to the specific request
MOQ According to the product
Packaging Metal case; plywood case; carton or as requirement
Delivery time 30 days upon receipt of 30% deposit; or upon receipt of relevant L/C;
