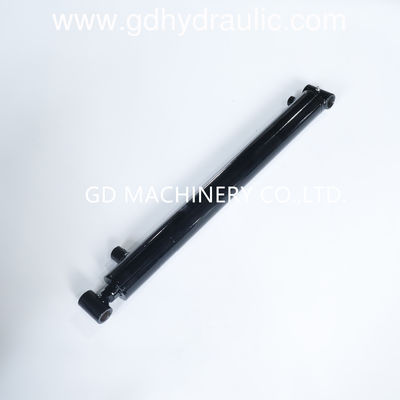

Bore 1.5" Stroke 4" 6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders

Bore 1.5" Stroke 4" 6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders

Bore 1.5" Stroke 4"  6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders
Bore 1.5" Stroke 4"  6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders Bore 1.5" Stroke 4"  6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders Bore 1.5" Stroke 4"  6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders Bore 1.5" Stroke 4"  6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders Bore 1.5" Stroke 4"  6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders Bore 1.5" Stroke 4"  6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders Bore 1.5" Stroke 4"  6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders Bore 1.5" Stroke 4"  6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders Bore 1.5" Stroke 4"  6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders

Large Image :  Bore 1.5" Stroke 4" 6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders Get Best Price

Product Details:
Place of Origin: China
Brand Name: GD
Certification: ISO ROSH CE 16949 SGS
Model Number: BU3024
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 35-500usd
Packaging Details: Polywood Case /Metal Case
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 30000per month
Detailed Product Description
Power: Hydraulic Standard Or Nonstandard: Standard Or Nonstandard
Body Material: Steel Structure: Piston Cylinder
Applicable Industries: Manufacturing Plant,Machinery Repair Shops,Energy & Mining,Construction Works ,Farms Color: Client's Request
Product Name: Hydraulic Cylinder Working Pressure: 3000PSI
Maximum Stroke: Requirements Shaft Diameter: 12mm-500mm
Application: Agricultural,Vehicle,mining,Truck,bridge Warranty: One Year
Material: ST52/CK45/SAE4140/SS304/SS316 Condition: 100%new
Packing: Client's Request Seals: Hallite,Parker
Seal Kits: US Specification,MERKEL NOK HALLITE PARKER Type: Double Action
Bore: 1.5" To 8" Stroke: 4" To 190"

Cross Tube Mount hydraulic cylinders

1.5" cross tube hydraulic cylinder     2.0" cross tube hydraulic cylinder   2.5" cross tube hydraulic cylinder

3.0" cross tube hydraulic cylinder     3.5" cross tube hydraulic cylinder    4.0" cross tube hydraulic cylinder

5.0" cross tube hydraulic cylinder     6.0" cross tube hydraulic cylinder

  • Double-acting steel-welded design creates pressure up to 3000 PSI
  • SAE-8 port (3/4 inch-16UNF) connects easily to your hydraulic hose
  • Includes a polished chrome-plated rod and a two-year warranty

Bore 1.5" Stroke 4"  6" 8" 10" 12" 16" Welded Double Acting cross tube Hydraulic Cylinders 0

Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
WBU30-1504 1'' 1.5''*4'' 12'' 16'' 1/4NPT/SAE 3/4'' 8
WBU30-1506 1.5''*6'' 14'' 20'' 9
WBU30-1508 1.5''*8'' 16'' 24'' 10
WBU30-1510 1.5''*10'' 18'' 28'' 11
WBU30-1512 1.5''*12'' 20'' 32'' 13
WBU30-1514 1.5''*14'' 22'' 36'' 14
WBU30-1516 1.5''*16'' 24'' 40'' 15
WBU30-1518 1.5''*18'' 26'' 44'' 16
WBU30-1520 1.5''*20'' 28'' 48'' 18
WBU30-1524 1.5''*24'' 32'' 56'' 20
WBU30-2004 1 1/4'' 2''*4'' 12'' 16'' 3/8NPT/SAE 1'' 12
WBU30-2006 2''*6'' 14'' 20'' 13
WBU30-2008 2''*8'' 16'' 24'' 15
WBU30-2010 2''*10'' 18'' 28'' 17
WBU30-2012 2''*12'' 20'' 32'' 19
WBU30-2014 2''*14'' 22'' 36'' 20
WBU30-2016 2''*16'' 24'' 40'' 22
WBU30-2018 2''*18'' 26'' 44'' 24
WBU30-2020 2''*20'' 28'' 48'' 25
WBU30-2024 2''*24'' 32'' 56'' 29
WBU30-2028 2''*28'' 36'' 64'' 32
WBU30-2030 2''*30'' 38'' 68'' 34
WBU30-2032 2''*32'' 40'' 72'' 36
WBU30-2036 2''*36'' 44'' 80'' 39
WBU30-2040 2''*40'' 48'' 88'' 42
WBU30-2048 2''*48'' 56'' 104'' 49
WBU30-2504 1 1/2'' 2.5''*4'' 12'' 16'' 1/2NPT/SAE 1'' 16
WBU30-2506 2.5''*6'' 14'' 20'' 18
WBU30-2508 2.5''*8'' 16'' 24'' 20
WBU30-2510 2.5''*10'' 18'' 28'' 22
WBU30-2512 2.5''*12'' 20'' 32'' 25
WBU30-2514 2.5''*14'' 22'' 36'' 27
WBU30-2516 2.5''*16'' 24'' 40'' 29
WBU30-2518 2.5''*18'' 26'' 44'' 31
WBU30-2520 2.5''*20'' 28'' 48'' 34
WBU30-2524 2.5''*24'' 32'' 56'' 38
WBU30-2528 2.5''*28'' 36'' 64'' 43
WBU30-2530 2.5''*30'' 38'' 68'' 45
WBU30-2532 2.5''*32'' 40'' 72'' 47
WBU30-2536 2.5''*36'' 44'' 80'' 51
WBU30-2540 2.5''*40'' 48'' 88'' 56
WBU30-2548 2.5''*48'' 56'' 104'' 65
WBU30-3004 1 1/2'' 3''*4'' 12'' 16'' 1/2NPT/SAE 1'' 19
WBU30-3006 3''*6'' 14'' 20'' 22
WBU30-3008 3''*8'' 16'' 24'' 24
WBU30-3010 3''*10'' 18'' 28'' 27
WBU30-3012 3''*12'' 20'' 32'' 29
WBU30-3014 3''*14'' 22'' 36'' 32
WBU30-3016 3''*16'' 24'' 40'' 34
WBU30-3018 3''*18'' 26'' 44'' 36
WBU30-3020 3''*20'' 28'' 48'' 39
WBU30-3024 3''*24'' 32'' 56'' 44
WBU30-3028 3''*28'' 36'' 64'' 49
WBU30-3030 3''*30'' 38'' 68'' 51
WBU30-3032 3''*32'' 40'' 72'' 54
WBU30-3036 3''*36'' 44'' 80'' 59
WBU30-3040 3''*40'' 48'' 88'' 63
WBU30-3048 3''*48'' 56'' 104'' 73
WBU30-3504 1 3/4'' 3.5''*4'' 14'' 18'' 1/2NPT/SAE 1 1/4'' 27
WBU30-3506 3.5''*6'' 16'' 22'' 30
WBU30-3508 3.5''*8'' 18'' 26'' 33
WBU30-3510 3.5''*10'' 20'' 30'' 36
WBU30-3512 3.5''*12'' 22'' 34'' 39
WBU30-3514 3.5''*14'' 24'' 38'' 42
WBU30-3516 3.5''*16'' 26'' 42'' 45
WBU30-3518 3.5''*18'' 28'' 46'' 48
WBU30-3520 3.5''*20'' 30 50'' 51
WBU30-3524 3.5''*24'' 34 58'' 57
WBU30-3528 3.5''*28'' 38 66'' 64
WBU30-3530 3.5''*30'' 40 70'' 67
WBU30-3532 3.5''*32'' 42 74'' 70
WBU30-3536 3.5''*36'' 46 82'' 76
WBU30-3540 3.5''*40'' 50 90'' 82
WBU30-3548 3.5''*48'' 58 106'' 94
WBU30-4004 2'' 4''*4'' 14'' 18'' 1/2NPT/SAE 1 1/2'' 34
WBU30-4006 4''*6'' 16'' 22'' 38
WBU30-4008 4''*8'' 18'' 26'' 41
WBU30-4010 4''*10'' 20'' 30'' 45
WBU30-4012 4''*12'' 22'' 34'' 49
WBU30-4014 4''*14'' 24'' 38'' 52
WBU30-4016 4''*16'' 26'' 42'' 56
WBU30-4018 4''*18'' 28'' 46'' 60
WBU30-4020 4''*20'' 30 50'' 63
WBU30-4024 4''*24'' 34 58'' 71
WBU30-4028 4''*28'' 38 66'' 78
WBU30-4030 4''*30'' 40 70'' 82
WBU30-4032 4''*32'' 42 74'' 85
WBU30-4036 4''*36'' 46 82'' 93
WBU30-4040 4''*40'' 50 90'' 100
WBU30-4048 4''*48'' 58 106'' 115
WBU30-5004 2 1/2'' 5''*4'' 14'' 18'' 1/2NPT/SAE 1 3/4'' 65
WBU30-5006 5''*6'' 16'' 22'' 70
WBU30-5008 5''*8'' 18'' 26'' 75
WBU30-5010 5''*10'' 20'' 30'' 80
WBU30-5012 5''*12'' 22'' 34'' 85
WBU30-5014 5''*14'' 24'' 38'' 90
WBU30-5016 5''*16'' 26'' 42'' 96
WBU30-5018 5''*18'' 28'' 46'' 101
WBU30-5020 5''*20'' 30 50'' 106
WBU30-5024 5''*24'' 34 58'' 116
WBU30-5028 5''*28'' 38 66'' 126
WBU30-5030 5''*30'' 40 70'' 131
WBU30-5032 5''*32'' 42 74'' 137
WBU30-5036 5''*36'' 46 82'' 147
WBU30-5040 5''*40'' 50 90'' 157
WBU30-5048 5''*48'' 58 106'' 178



  • 100% tested
  • Grease Zerks included
  • This Welded Tube Hydraulic Cylinder is double acting. It is all steel welded. These are commonly used in agricultural and construction industries but also for applications such as waste & recycling, OEM manufacturing of trailers, and metal fabricating.

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us.
