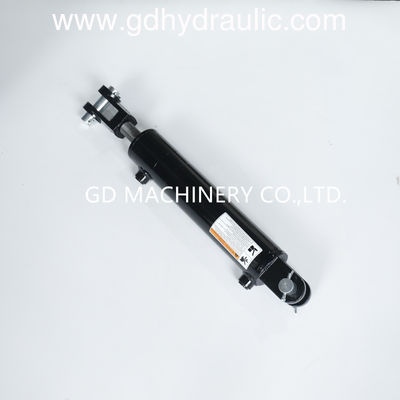

Threaded Clevis 3000PSI rated hydraulic Cylinder size availability:bore:2"to5" Stroke 4" to 48"

Large Image : Threaded Clevis 3000PSI rated hydraulic Cylinder size availability:bore:2"to5" Stroke 4" to 48" Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	GD
Certification:	ISO ROSH CE 16949 SGS
Model Number:	ACL

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	35-200 USD /each
Packaging Details:	Polywood Case /Metal Case
Delivery Time:	30days
Payment Terms:	L/C, T/T
Supply Ability:	30000per month

Contact Now

Detailed Product Description

Power:	Hydraulic	Standard Or Nonstandard:	Standard
Body Material:	Steel	Structure:	Piston Cylinder
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Energy & Mining,Construction Works ,Farms	Color:	Customer Requirement
Product Name:	Hydraulic Cylinder	Working Pressure:	3000PSI
Maximum Stroke:	Requirements	Shaft Diameter:	12mm-500mm
Application:	Agricultural,Vehicle,mining,Truck,bridge	Warranty:	One Year
Material:	ST52/CK45/SAE4140/SS304/SS316	Condition:	100%new
Packing:	Client's Request	Name:	Welded Hydraulic Cylinder Clevis End
Seals:	Hallite,Parker	Seal Kits:	US Specification
Type:	Double Action

Standard welded hydraulic cylinder Adjustable Female Clevis Cylinder

Threaded clevis hydraulic cylinder

Basic Info.

Acting Way

Double Acting

Working Method

Straight Trip

Adjusted Form

Regulated Type

Structure

Piston Type

Material

Carbon Steel

Standard

Ts16949

Cylinder Material

20#/45# Steel

Working Pressure

2500psi/3000psi

Seal Kits Brand

Hallite

Warranty

1 Year

Samples

Allowed

Transport Package

Polywood Case /Metal Case

Specification

1200*1000*1000

Trademark

Origin

China

HS Code

84122100

Production Capacity

300000PCS/Year

Threaded Clevis 3000PSI rated hydraulic Cylinder size availability:bore:2"to5" Stroke 4" to 48" 0

Part Number	Rod Dia.gd	Bore x Stroke	Dimensions gd		Port Size	Pin Size	Weight (lbs)
Part Number	Rod Dia.gd	Bore x Stroke	Retracted	Extended	Port Size	Pin Size	Weight (lbs)
ACL30-1504	1''	1.5''*4''	14 1/4''	18 1/4''	SAE#6	3/4''	10
ACL30-1506		1.5''*6''	16 1/4''	22 1/4''			11
ACL30-1508		1.5''*8''	18 1/4''	26 1/4''			12
ACL30-1508-ASAE		1.5''*8''	20 1/4''	28 1/4''			13
ACL30-1510 gd		1.5''*10''	20 1/4''	30 1/4''			13
ACL30-1512		1.5''*12''	22 1/4''	34 1/4''			15
ACL30-1514		1.5''*14''	24 1/4''	38 1/4''			16
ACL30-1516		1.5''*16''	26 1/4''	42 1/4''			17
ACL30-1518		1.5''*18''	28 1/4''	46 1/4''			18
ACL30-1520		1.5''*20''	30 1/4''	50 1/4''			20
ACL30-1524		1.5''*24''	34 1/4''	58 1/4''			22
ACL30-1528		1.5''*28''	38 1/4''	66 1/4''			25
ACL30-1530		1.5''*30''	40 1/4''	70 1/4''			26
ACL30-1532		1.5''*32''	42 1/4''	74 1/4''			27
ACL30-1534		1.5''*34''	44 1/4''	78 1/4''			28
ACL30-1536		1.5''*36''	46 1/4''	82 1/4''			29
ACL30-2004	1''	2''*4''	14 1/4''	18 1/4''	SAE#8	1''	16
ACL30-2006		2''*6''	16 1/4''	22 1/4''			17
ACL30-2008		2''*8''	18 1/4''	26 1/4''			19
ACL30-2008-ASAE		2''*8''	20 1/4''	28 1/4''			20
ACL30-2010gd		2''*10''	20 1/4''	30 1/4''			20
ACL30-2012		2''*12''	22 1/4''	34 1/4''			22
ACL30-2014		2''*14''	24 1/4''	38 1/4''			24
ACL30-2016		2''*16''	26 1/4''	42 1/4''			25
ACL30-2018		2''*18''	28 1/4''	46 1/4''			27
ACL30-2020		2''*20''	30 1/4''	50 1/4''			28
ACL30-2024		2''*24''	34 1/4''	58 1/4''			31
ACL30-2028		2''*28''	38 1/4''	66 1/4''			35
ACL30-2030		2''*30''	40 1/4''	70 1/4''			36
ACL30-2032		2''*32''	42 1/4''	74 1/4''			38
ACL30-2034		2''*34''	44 1/4''	78 1/4''			39
ACL30-2036		2''*36''	46 1/4''	82 1/4''			41
ACL30-2504	1''	2.5''*4''	14 1/4''	18 1/4''	SAE#8	1''	19
ACL30-2506		2.5''*6''	16 1/4''	22 1/4''			21
ACL30-2508		2.5''*8''	18 1/4''	26 1/4''			23
ACL30-2508-ASAE		2.5''*8''	20 1/4''	28 1/4''			23
ACL30-2510		2.5''*10''	20 1/4''	30 1/4''			24
ACL30-2512		2.5''*12''	22 1/4''	34 1/4''			26
ACL30-2514		2.5''*14''	24 1/4''	38 1/4''			28
ACL30-2516		2.5''*16''	26 1/4''	42 1/4''			30
ACL30-2518		2.5''*18''	28 1/4''	46 1/4''			32
ACL30-2520		2.5''*20''	30 1/4''	50 1/4''			34
ACL30-2524		2.5''*24''	34 1/4''	58 1/4''			38
ACL30-2528		2.5''*28''	38 1/4''	66 1/4''			42
ACL30-2530		2.5''*30''	40 1/4''	70 1/4''			44
ACL30-2532		2.5''*32''	42 1/4''	74 1/4''			46
ACL30-2534		2.5''*34''	44 1/4''	78 1/4''			48
ACL30-2536		2.5''*36''	46 1/4''	82 1/4''			49
ACL30-3004	1''	3''*4''	14 1/4''	18 1/4''	SAE#8	1''	24
ACL30-3006 gd		3''*6''	16 1/4''	22 1/4''			26
ACL30-3008		3''*8''	18 1/4''	26 1/4''			29
ACL30-3008-ASAE		3''*8''	20 1/4''	28 1/4''			29
ACL30-3010		3''*10''	20 1/4''	30 1/4''			31
ACL30-3012		3''*12''	22 1/4''	34 1/4''			34
ACL30-3014		3''*14''	24 1/4''	38 1/4''			36
ACL30-3016		3''*16''	26 1/4''	42 1/4''			39
ACL30-3018		3''*18''	28 1/4''	46 1/4''			41
ACL30-3020		3''*20''	30 1/4''	50 1/4''			43
ACL30-3024		3''*24''	34 1/4''	58 1/4''			48
ACL30-3028		3''*28''	38 1/4''	66 1/4''			53
ACL30-3030		3''*30''	40 1/4''	70 1/4''			56
ACL30-3032		3''*32''	42 1/4''	74 1/4''			58
ACL30-3034		3''*34''	44 1/4''	78 1/4''			61
ACL30-3036		3''*36''	46 1/4''	82 1/4''			63
ACL30-3504	1 ''	3.5 '' *4 ''	14 1/4 ''	18 1/4 ''	SAE#8	1 ''	29
ACL30-3506		3.5 '' *6 ''	16 1/4 ''	22 1/4 ''			32
ACL30-3508		3.5 '' *8 ''	18 1/4 ''	26 1/4 ''			35
ACL30-3508-ASAE		3.5 '' *8 ''	20 1/4 ''	28 1/4 ''			36
ACL30-3510		3.5 '' *10 ''	20 1/4 ''	30 1/4 ''			38
ACL30-3512		3.5 '' *12 ''	22 1/4 ''	34 1/4 ''			41
ACL30-3514		3.5 '' *14 ''	24 1/4 ''	38 1/4 ''			44
ACL30-3516		3.5 '' *16 ''	26 1/4 ''	42 1/4 ''			47
ACL30-3518		3.5 '' *18 ''	28 1/4 ''	46 1/4 ''			50
ACL30-3520		3.5 '' *20 ''	30 1/4 ''	50 1/4 ''			53
ACL30-3524		3.5 '' *24 ''	34 1/4 ''	58 1/4 ''			59
ACL30-3528		3.5 '' *28 ''	38 1/4 ''	66 1/4 ''			65
ACL30-3530		3.5 '' *30 ''	40 1/4 ''	70 1/4 ''			68
ACL30-3532		3.5 '' *32 ''	42 1/4 ''	74 1/4 ''			71
ACL30-3534		3.5 '' *34 ''	44 1/4 ''	78 1/4 ''			75
ACL30-3536		3.5 '' *36 ''	46 1/4 ''	82 1/4 ''			78
ACL30-4004	1''	4''*4''	14 1/4''	18 1/4''	SAE#8	1''	35
ACL30-4006		4''*6''	16 1/4''	22 1/4''			38
ACL30-4008		4''*8''	18 1/4''	26 1/4''			42
ACL30-4008-ASAE		4''*8''	20 1/4''	28 1/4''			43
ACL30-4010 gd		4''*10''	20 1/4''	30 1/4''			46
ACL30-4012		4''*12''	22 1/4''	34 1/4''			49
ACL30-4014		4''*14''	24 1/4''	38 1/4''			53
ACL30-4016		4''*16''	26 1/4''	42 1/4''			57
ACL30-4018		4''*18''	28 1/4''	46 1/4''			60
ACL30-4020		4''*20''	30 1/4''	50 1/4''			64
ACL30-4024		4''*24''	34 1/4''	58 1/4''			71
ACL30-4028		4''*28''	38 1/4''	66 1/4''			79
ACL30-4030		4''*30''	40 1/4''	70 1/4''			83
ACL30-4032		4''*32''	42 1/4''	74 1/4''			86
ACL30-4034		4''*34''	44 1/4''	78 1/4''			90
ACL30-4036		4''*36''	46 1/4''	82 1/4''			94

PART NUMBER

INSIDER DIAMETER

OUTSIDER DIAMETER

ROD THREAD

ROD DIAMETER

POR

ACL15-

1.50"

2.00"

10.25"

1.50"

0.76"

1.62"

4.50*

1.87,

0.87"

1.75"

2.00"

1.62"

0.93"

1.87"

0.875-14 UNF

1.00"

SAE#6

ACL20-

2.00"

2.50"

10.25"

2.00"

1.01"

2.12"

3.62"

2.25"

1.12"

2.12"

2.62"

2.12"

0.81"

2.06"

1.125-12 UNF

1.12"

SAE#8

ACL25-

2.50"

3.00"

10.25"

2.00"

1.01"

2.12"

3.62"

2.25"

1.12"

2.12"

2.62"

2.12"

0.81"

2.06"

1.125-12 UNF

1.25"

SAE#8

ACL30-

3.00"

3.50"

10.25"

2.00"

1.01"

1.87"

3.62"

2.25"

1.12"

2.62"

2.12"

0.87"

2.18"

1.250-12 UNF

1.50"

SAE#8

ACL35-

3.50"

4.00"

10.25"

2.00"

1.01"

1.87"

3.62"

2.50"

1.12"

2.62"

2.75"

2.12"

0.93"

2.18"

1.500-12 UNF

1.75"

SAE#8

ACL40-

4.00"

4.50"

10.25"

2.25"

1.01"

1.75"

3.62"

2.50"

1.12"

2.62"

2.75"

2.12"

1.00"

2.18"

1.500-12 UNF

2.00"

SAE#8

*FOR 8.00" STROKE :*A= 12.25"

*FOR 8.00" STROKE :*E= 6.50"(1.50" BORE) *E= 5.62"(2.00" TO 4.00" BORE)

SEAL TEMPERATURE RANGE: -30°C/+100°C(-22°F/ + 212°F)

SEAL MAXIMUM SPEED:3 FT/SEC

MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI

DIMENSIONS A AND E ARE FOR REFERENCES ONLY AS CLEVIS IS ADJUSTABLE

Hydraulic cylinders can be built according to your drawings or technical requirement.
