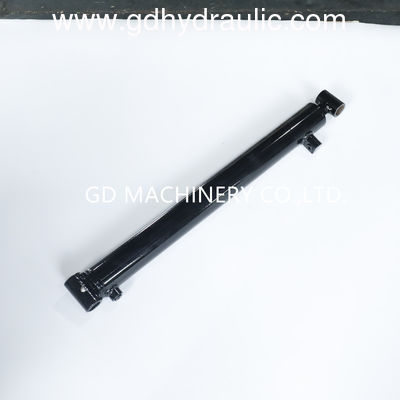

Welded Bushing (welded cross tube) hydraulic cylinder

Welded Bushing (welded cross tube) hydraulic cylinder

Welded Bushing (welded cross tube) hydraulic cylinder
Welded Bushing (welded cross tube) hydraulic cylinder Welded Bushing (welded cross tube) hydraulic cylinder Welded Bushing (welded cross tube) hydraulic cylinder Welded Bushing (welded cross tube) hydraulic cylinder Welded Bushing (welded cross tube) hydraulic cylinder

Large Image :  Welded Bushing (welded cross tube) hydraulic cylinder Get Best Price

Product Details:
Place of Origin: China
Brand Name: GD
Certification: ISO CE
Model Number: WBU2016
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 50
Packaging Details: plywood or iron case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 10000 units per month
Detailed Product Description
Product Name: Welded Cross Tube Hydraulic Cylinder Color: Customerized
Cylinder Barrel: Hard Chrome Plating Oil Port: NPTF/SAE
Working Pressure: 3000PSI Material: 45# Steel
Application: Agriculture Industrial Seal Kits: US Specification
Mounting Style: Pin Eye Mounting Action: Double Acting



Double Acting Welded Cross tube Hydraulic Cylinder

GD Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
WBU30-1504 1'' 1.5''*4'' 12'' 16'' 1/4NPT 3/4'' 8
WBU30-1506 1.5''*6'' 14'' 20'' 9
WBU30-1508 1.5''*8'' 16'' 24'' 10
WBU30-1510 1.5''*10'' 18'' 28'' 11
WBU30-1512 1.5''*12'' 20'' 32'' 13
WBU30-1514 1.5''*14'' 22'' 36'' 14
WBU30-1516 1.5''*16'' 24'' 40'' 15
WBU30-1518 1.5''*18'' 26'' 44'' 16
WBU30-1520 1.5''*20'' 28'' 48'' 18
WBU30-1524 1.5''*24'' 32'' 56'' 20
WBU30-2004 1 1/4'' 2''*4'' 12'' 16'' 3/8NPT 1'' 12
WBU30-2006 2''*6'' 14'' 20'' 13
WBU30-2008 2''*8'' 16'' 24'' 15
WBU30-2010 2''*10'' 18'' 28'' 17
WBU30-2012 2''*12'' 20'' 32'' 19
WBU30-2014 2''*14'' 22'' 36'' 20
WBU30-2016 2''*16'' 24'' 40'' 22
WBU30-2018 2''*18'' 26'' 44'' 24
WBU30-2020 2''*20'' 28'' 48'' 25
WBU30-2024 2''*24'' 32'' 56'' 29
WBU30-2028 2''*28'' 36'' 64'' 32
WBU30-2030 2''*30'' 38'' 68'' 34
WBU30-2032 2''*32'' 40'' 72'' 36
WBU30-2036 2''*36'' 44'' 80'' 39
WBU30-2040 2''*40'' 48'' 88'' 42
WBU30-2048 2''*48'' 56'' 104'' 49
WBU30-2504 1 1/2'' 2.5''*4'' 12'' 16'' 1/2NPT 1'' 16
WBU30-2506 2.5''*6'' 14'' 20'' 18
WBU30-2508 2.5''*8'' 16'' 24'' 20
WBU30-2510 2.5''*10'' 18'' 28'' 22
WBU30-2512 2.5''*12'' 20'' 32'' 25
WBU30-2514 2.5''*14'' 22'' 36'' 27
WBU30-2516 2.5''*16'' 24'' 40'' 29
WBU30-2518 2.5''*18'' 26'' 44'' 31
WBU30-2520 2.5''*20'' 28'' 48'' 34
WBU30-2524 2.5''*24'' 32'' 56'' 38
WBU30-2528 2.5''*28'' 36'' 64'' 43
WBU30-2530 2.5''*30'' 38'' 68'' 45
WBU30-2532 2.5''*32'' 40'' 72'' 47
WBU30-2536 2.5''*36'' 44'' 80'' 51
WBU30-2540 2.5''*40'' 48'' 88'' 56
WBU30-2548 2.5''*48'' 56'' 104'' 65
WBU30-3004 1 1/2'' 3''*4'' 12'' 16'' 1/2NPT 1'' 19
WBU30-3006 3''*6'' 14'' 20'' 22
WBU30-3008 3''*8'' 16'' 24'' 24
WBU30-3010 3''*10'' 18'' 28'' 27
WBU30-3012 3''*12'' 20'' 32'' 29
WBU30-3014 3''*14'' 22'' 36'' 32
WBU30-3016 3''*16'' 24'' 40'' 34
WBU30-3018 3''*18'' 26'' 44'' 36
WBU30-3020 3''*20'' 28'' 48'' 39
WBU30-3024 3''*24'' 32'' 56'' 44
WBU30-3028 3''*28'' 36'' 64'' 49
WBU30-3030 3''*30'' 38'' 68'' 51
WBU30-3032 3''*32'' 40'' 72'' 54
WBU30-3036 3''*36'' 44'' 80'' 59
WBU30-3040 3''*40'' 48'' 88'' 63
WBU30-3048 3''*48'' 56'' 104'' 73
WBU30-3504 1 3/4'' 3.5''*4'' 14'' 18'' 1/2NPT 1 1/4'' 27
WBU30-3506 3.5''*6'' 16'' 22'' 30
WBU30-3508 3.5''*8'' 18'' 26'' 33
WBU30-3510 3.5''*10'' 20'' 30'' 36
WBU30-3512 3.5''*12'' 22'' 34'' 39
WBU30-3514 3.5''*14'' 24'' 38'' 42
WBU30-3516 3.5''*16'' 26'' 42'' 45
WBU30-3518 3.5''*18'' 28'' 46'' 48
WBU30-3520 3.5''*20'' 30 50'' 51
WBU30-3524 3.5''*24'' 34 58'' 57
WBU30-3528 3.5''*28'' 38 66'' 64
WBU30-3530 3.5''*30'' 40 70'' 67
WBU30-3532 3.5''*32'' 42 74'' 70
WBU30-3536 3.5''*36'' 46 82'' 76
WBU30-3540 3.5''*40'' 50 90'' 82
WBU30-3548 3.5''*48'' 58 106'' 94
WBU30-4004 2'' 4''*4'' 14'' 18'' 1/2NPT 1 1/2'' 34
WBU30-4006 4''*6'' 16'' 22'' 38
WBU30-4008 4''*8'' 18'' 26'' 41
WBU30-4010 4''*10'' 20'' 30'' 45
WBU30-4012 4''*12'' 22'' 34'' 49
WBU30-4014 4''*14'' 24'' 38'' 52
WBU30-4016 4''*16'' 26'' 42'' 56
WBU30-4018 4''*18'' 28'' 46'' 60
WBU30-4020 4''*20'' 30 50'' 63
WBU30-4024 4''*24'' 34 58'' 71
WBU30-4028 4''*28'' 38 66'' 78
WBU30-4030 4''*30'' 40 70'' 82
WBU30-4032 4''*32'' 42 74'' 85
WBU30-4036 4''*36'' 46 82'' 93
WBU30-4040 4''*40'' 50 90'' 100
WBU30-4048 4''*48'' 58 106'' 115
WBU30-5004 2 1/2'' 5''*4'' 14'' 18'' 1/2NPT 1 3/4'' 65
WBU30-5006 5''*6'' 16'' 22'' 70
WBU30-5008 5''*8'' 18'' 26'' 75
WBU30-5010 5''*10'' 20'' 30'' 80
WBU30-5012 5''*12'' 22'' 34'' 85
WBU30-5014 5''*14'' 24'' 38'' 90
WBU30-5016 5''*16'' 26'' 42'' 96
WBU30-5018 5''*18'' 28'' 46'' 101
WBU30-5020 5''*20'' 30 50'' 106
WBU30-5024 5''*24'' 34 58'' 116
WBU30-5028 5''*28'' 38 66'' 126
WBU30-5030 5''*30'' 40 70'' 131
WBU30-5032 5''*32'' 42 74'' 137
WBU30-5036 5''*36'' 46 82'' 147
WBU30-5040 5''*40'' 50 90'' 157
WBU30-5048 5''*48'' 58 106'' 178



GD PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER A B c D E F G H ROD DIAMETER PORT
WBU15- 1.50" 2.00" 8.00” 1.25" 0.76" 2.62" 2.25" 2.00" 1.06" 1.87" 1.00" 1/4NPT
WBU20- 2.00" 2.50" 8.00" 1.50" 1.01" 2.25" 2.75" 2.25" 1.00" 2.06" 1.25" 3/8NPT
WBU25- 2.50" 3.00" 8.00" 1.50" 1.01" 2.25" 3.25" 2.25" 0.81" 2.18" 1.50" 1/2NPT
WBU30- 3.00" 3.50” 8.00" 1.50" 1.01" 2.25" 3.75" 2.25" 0.81" 2.18" 1.50" 1/2NPT
WBU35- 3.50" 4.00" 10.00" 2.00" 1.26" 4.00" 4.25" 2.25" 0.81" 2.18" 1.75" 1/2NPT
WBU40- 4.00" 4.50" 10.00" 2.25" 1.51" 3.75" 4.75" 2.50" 0.81" 2.18" 2.00" 1/2NPT
WBU50- 5.00" 5.50" 10.00" 3.00" *1.76" 3.50" 5.75" 3.25" 1.25" 2.75" 2.50" 1/2NPT
FOR 5.00" BORE:2.00"PINS ARE AVAILABLE WITH REMOVABLE BUSHING
GD FOR 1.50" TO 4.00" BORE SAE PORTS ARE AVAILABLE
SEAL TEMPERATURE RANGE: -30°C/+100oC(-22°F/ + 212°F)
GD SEAL MAXIMUM SPEED:3 FT/SEC GD
MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI
