Detailed Product Description

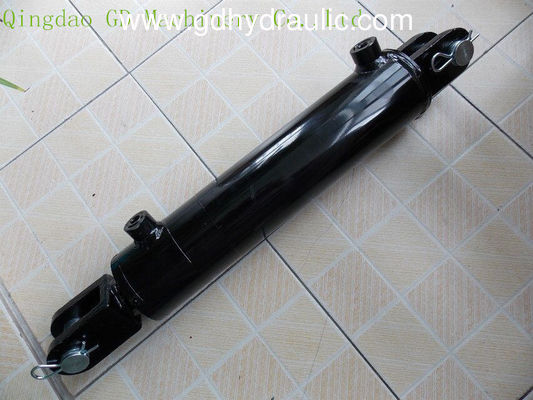

Product Name: Welded Clevis Hydraulic Cylinder Color: Customerized
Cylinder Barrel: Hard Chrome Plating Oil Port: NPTF/SAE
Working Pressure: 3000PSI Material: 45# Steel
Application: Agriculture Industrial Seal Kits: US Specification
Mounting Style: Pin Eye Mounting Action: Double Acting

Double Acting welded Clevis Hydraulic Cylinder

HCW Clevis Welded  hydraulic cylinder 0

GD Part Number Rod Dia. Bore x Stroke Dimensions Port Size Pin Size Weight (lbs)
Retracted Extended
WCL30-1504 1'' 1.5''*4'' 14 1/4'' 18 1/4'' 3/8NPT 3/4'' 8
WCL30-1506 1.5''*6'' 16 1/4'' 22 1/4'' 9
WCL30-1508 1.5''*8'' 18 1/4'' 26 1/4'' 11
WCL30-1510 1.5''*10'' 20 1/4'' 30 1/4'' 12
WCL30-1512 1.5''*12'' 22 1/4'' 34 1/4'' 13
WCL30-1514 1.5''*14'' 24 1/4'' 38 1/4'' 14
WCL30-1516 1.5''*16'' 26 1/4'' 42 1/4'' 15
WCL30-1518 1.5''*18'' 28 1/4'' 46 1/4'' 17
WCL30-1520 1.5''*20'' 30 1/4'' 50 1/4'' 18
WCL30-1524 1.5''*24'' 34 1/4'' 58 1/4'' 20
WCL30-2004 1 1/4'' 2''*4'' 14 1/4'' 18 1/4'' 3/8NPT 1'' 14
WCL30-2006 2''*6'' 16 1/4'' 22 1/4'' 16
WCL30-2008 2''*8'' 18 1/4'' 26 1/4'' 18
WCL30-2010 2''*10'' 20 1/4'' 30 1/4'' 19
WCL30-2012 2''*12'' 22 1/4'' 34 1/4'' 21
WCL30-2014 2''*14'' 24 1/4'' 38 1/4'' 23
WCL30-2016 2''*16'' 26 1/4'' 42 1/4'' 25
WCL30-2018 2''*18'' 28 1/4'' 46 1/4'' 26
WCL30-2020 2''*20'' 30 1/4'' 50 1/4'' 28
WCL30-2024 2''*24'' 34 1/4'' 58 1/4'' 31
WCL30-2028 2''*28'' 38 1/4'' 66 1/4'' 35
WCL30-2030 2''*30'' 40 1/4'' 70 1/4'' 36
WCL30-2032 2''*32'' 42 1/4'' 74 1/4'' 38
WCL30-2034 2''*34'' 44 1/4'' 78 1/4'' 40
WCL30-2036 2''*36'' 46 1/4'' 82 1/4'' 42
WCL30-2040 2''*40'' 50 1/4'' 90 1/4'' 45
WCL30-2048 2''*48'' 58 1/4'' 106 1/4'' 52
WCL30-2504 1 1/2'' 2.5''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 18
WCL30-2506 2.5''*6'' 16 1/4'' 22 1/4'' 20
WCL30-2508 2.5''*8'' 18 1/4'' 26 1/4'' 24
WCL30-2510 2.5''*10'' 20 1/4'' 30 1/4'' 25
WCL30-2512 2.5''*12'' 22 1/4'' 34 1/4'' 27
WCL30-2514 2.5''*14'' 24 1/4'' 38 1/4'' 29
WCL30-2516 2.5''*16'' 26 1/4'' 42 1/4'' 32
WCL30-2518 2.5''*18'' 28 1/4'' 46 1/4'' 34
WCL30-2520 2.5''*20'' 30 1/4'' 50 1/4'' 36
WCL30-2524 2.5''*24'' 34 1/4'' 58 1/4'' 40
WCL30-2528 2.5''*28'' 38 1/4'' 66 1/4'' 45
WCL30-2530 2.5''*30'' 40 1/4'' 70 1/4'' 47
WCL30-2532 2.5''*32'' 42 1/4'' 74 1/4'' 49
WCL30-2534 2.5''*34'' 44 1/4'' 78 1/4'' 52
WCL30-2536 2.5''*36'' 46 1/4'' 82 1/4'' 54
WCL30-2540 2.5''*40'' 50 1/4'' 90 1/4'' 58
WCL30-2548 2.5''*48'' 58 1/4'' 106 1/4'' 67
WCL30-3004 1 1/2'' 3''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 22
WCL30-3006 3''*6'' 16 1/4'' 22 1/4'' 24
WCL30-3008 3''*8'' 18 1/4'' 26 1/4'' 27
WCL30-3010 3''*10'' 20 1/4'' 30 1/4'' 29
WCL30-3012 3''*12'' 22 1/4'' 34 1/4'' 31
WCL30-3014 3''*14'' 24 1/4'' 38 1/4'' 34
WCL30-3016 3''*16'' 26 1/4'' 42 1/4'' 36
WCL30-3018 3''*18'' 28 1/4'' 46 1/4'' 39
WCL30-3020 3''*20'' 30 1/4'' 50 1/4'' 41
WCL30-3024 3''*24'' 34 1/4'' 58 1/4'' 46
WCL30-3028 3''*28'' 38 1/4'' 66 1/4'' 51
WCL30-3030 3''*30'' 40 1/4'' 70 1/4'' 53
WCL30-3032 3''*32'' 42 1/4'' 74 1/4'' 56
WCL30-3034 3''*34'' 44 1/4'' 78 1/4'' 58
WCL30-3036 3''*36'' 46 1/4'' 82 1/4'' 61
WCL30-3040 3''*40'' 50 1/4'' 90 1/4'' 66
WCL30-3048 3''*48'' 58 1/4'' 106 1/4'' 75
WCL30-3504 1 3/4'' 3.5''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 27
WCL30-3506 3.5''*6'' 16 1/4'' 22 1/4'' 30
WCL30-3508 3.5''*8'' 18 1/4'' 26 1/4'' 35
WCL30-3510 3.5''*10'' 20 1/4'' 30 1/4'' 36
WCL30-3512 3.5''*12'' 22 1/4'' 34 1/4'' 39
WCL30-3514 3.5''*14'' 24 1/4'' 38 1/4'' 42
WCL30-3516 3.5''*16'' 26 1/4'' 42 1/4'' 46
WCL30-3518 3.5''*18'' 28 1/4'' 46 1/4'' 49
WCL30-3520 3.5''*20'' 30 1/4'' 50 1/4'' 52
WCL30-3524 3.5''*24'' 34 1/4'' 58 1/4'' 58
WCL30-3528 3.5''*28'' 38 1/4'' 66 1/4'' 64
WCL30-3530 3.5''*30'' 40 1/4'' 70 1/4'' 67
WCL30-3532 3.5''*32'' 42 1/4'' 74 1/4'' 70
WCL30-3534 3.5''*34'' 44 1/4'' 78 1/4'' 73
WCL30-3536 3.5''*36'' 46 1/4'' 82 1/4'' 76
WCL30-3540 3.5''*40'' 50 1/4'' 90 1/4'' 82
WCL30-3548 3.5''*48'' 58 1/4'' 106 1/4'' 94
WCL30-4004 2 4''*4'' 14 1/4'' 18 1/4'' 1/2NPT 1'' 33
WCL30-4006 4''*6'' 16 1/4'' 22 1/4'' 37
WCL30-4008 4''*8'' 18 1/4'' 26 1/4'' 42
WCL30-4010 4''*10'' 20 1/4'' 30 1/4'' 44
WCL30-4012 4''*12'' 22 1/4'' 34 1/4'' 48
WCL30-4014 4''*14'' 24 1/4'' 38 1/4'' 52
WCL30-4016 4''*16'' 26 1/4'' 42 1/4'' 55
WCL30-4018 4''*18'' 28 1/4'' 46 1/4'' 59
WCL30-4020 4''*20'' 30 1/4'' 50 1/4'' 63
WCL30-4024 4''*24'' 34 1/4'' 58 1/4'' 70
WCL30-4028 4''*28'' 38 1/4'' 66 1/4'' 77
WCL30-4030 4''*30'' 40 1/4'' 70 1/4'' 81
WCL30-4032 4''*32'' 42 1/4'' 74 1/4'' 85
WCL30-4034 4''*34'' 44 1/4'' 78 1/4'' 89
WCL30-4036 4''*36'' 46 1/4'' 82 1/4'' 92
WCL30-4040 4''*40'' 50 1/4'' 90 1/4'' 100
WCL30-4048 4''*48'' 58 1/4'' 106 1/4'' 114
WCL30-5004 2 1/2'' 5''*4'' 16 1/4'' 20 1/4'' 1/2NPT 1.5'' 64
WCL30-5006 5''*6'' 18 1/4'' 24 1/4'' 69
WCL30-5008 5''*8'' 20 1/4'' 28 1/4'' 74
WCL30-5010 5''*10'' 22 1/4'' 32 1/4'' 79
WCL30-5012 5''*12'' 24 1/4'' 36 1/4'' 84
WCL30-5014 5''*14'' 26 1/4'' 40 1/4'' 89
WCL30-5016 5''*16'' 28 1/4'' 44 1/4'' 95
WCL30-5018 5''*18'' 30 1/4'' 48 1/4'' 100
WCL30-5020 5''*20'' 32 1/4'' 52 1/4'' 105
WCL30-5024 5''*24'' 36 1/4'' 60 1/4'' 115
WCL30-5028 5''*28'' 40 1/4'' 68 1/4'' 125
WCL30-5030 5''*30'' 42 1/4'' 72 1/4'' 130
WCL30-5032 5''*32'' 44 1/4'' 76 1/4'' 136
WCL30-5034 5''*34'' 46 1/4'' 80 1/4'' 141
WCL30-5036 5''*36'' 48 1/4'' 84 1/4'' 146
WCL30-5040 5''*40'' 52 1/4'' 92 1/4'' 156
WCL30-5048 5''*48'' 60 1/4'' 108 1/4'' 177
PART NUMBER INSIDER DIAMETER OUTSIDER DIAMETER *A B C D *E F G H



   I

J K ROD DIAMETER PORT
WCL15- 1.50" 2.00" 8.25" 1.62" 0.87" 1.37" 2.25" 1.37" 0.75" 0.76" none 0.93" 1.87" 1.00" 3/8NPT
WCL20- 2.00" 2.50" 10.25" 2.12" 1.12" 2.12" 3.12" 2.12" 1.00" 1.01" none 1.00" 2.06" 1.25" 3/8NPT
WCL25- 2.50" 3.00" 10.25" 2.12" 1.12" 2.12" 3.12" 2.12" 1.00" 1.01" none 0.81" 2.18" 1.50" 1/2NPT
WCL30- 3.00" 3.50" 10.25" 2.12" 1.12" 2.12" 3.12" 2.12" 1.00" 1.01" none 0.81" 2.18" 1.50" 1/2 N PT
WCL35- 3.50" 4.00" 10.25" 2.37" 1.12" 2.00" 3.12" 2.12" 1.00" 1.01" 2.12" 0.93" 2.18" 1.75" 1/2NPT
WCL40- 4.00" 4.50" 10.25" 2.37" 1.12" 1.75" 3.12" 2.00" 1.00" 1.01" 2.00" 1.06" 2.18" 2.00" 1/2NPT
WCL50- 5.00" 5.50" 13.00" 3.12" 1.62" 2.25" 3.62" 2.25" 1.50" 1.51" none 1.37" 2.75" 2.50" 1/2NPT
*FOR 8.00" STROKE :*A= 12.25"(2.00" TO 4.00" BORE)
*FOR 8.00" STROKE :*E= 5.12"(2.00" TO 4.00" BORE)
GD FOR 1.50" TO 4.00" BORE:SAE PORTS ARE AVAILABLE
SEAL TEMPERATURE RANGE:-30°C/+100°C(-22°F/+212°F)
GD SEAL MAXIMUM SPEED:3 FT/SEC
MAXIMUM RETRACTED WORKING PRESSURE= 3000 PSI
