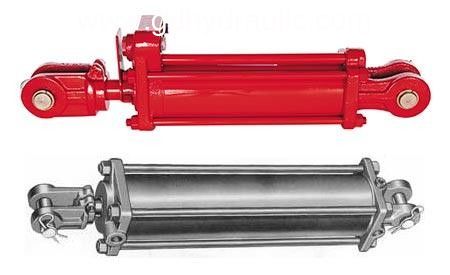

High quality tierod hydraulic cylinder for tipping trailer

High quality tierod hydraulic cylinder for tipping trailer

High quality  tierod hydraulic cylinder for tipping trailer
High quality  tierod hydraulic cylinder for tipping trailer High quality  tierod hydraulic cylinder for tipping trailer

Large Image :  High quality tierod hydraulic cylinder for tipping trailer Get Best Price

Product Details:
Place of Origin: China
Brand Name: GD
Certification: ISO ROSH CE
Model Number: TTR25-5004
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $30
Packaging Details: plywood case or metal wood case
Delivery Time: 30-45days
Payment Terms: T/T, Western Union
Supply Ability: 70000pcs per month
Detailed Product Description

        Tie rod hydraulic cylinder





1. Rod End Cross Tube High tensile steel
2. Rod High tensile SAE C1045(UNI C45), ground & polished hard chrome plated rod
3. Tube High tensile cold drawn tube, precision honed for extended seal life
4. Piston Split piston structure preventing the seal kits to be damaged during assembly
5. Piston Nut Lock nut, grade 8, high tensile zinc-plated
6. Port Plug Plastic
7.Grease Fitting M8(standard) included
8. Gland High tensile cast steel
9.Base End High tensile SAE C1045(UNI C45)
A. Piston OD Seal Compact seal w/plastic anti-extrusion ring(2)+filled PTFE guide ring(2)+elastomeric energizer(1)
B. Piston ID Seal O-ring
C. Tube Seal O-ring(1)+back up ring(1) for anti-extrusion
D. Wear Ring Phenol resin w/fabric for superexcellent life
E. Rod Seal Polyurethane U-cup
F. Wiper Polyurethane

Key Specifications/Special Features:

Features:
2T series: 2500PSI rated pressured, 4000PSI testing pressure
3T series: 3000PSI rated pressured, 6000PSI testing pressure
Widely used in agricultural machinery and other similar machines
Imported world famous brands and Chinese brands sealing system
High quality cold drawn steel tube, with good rigidity
CNC rolled tube inner surface, with roughness of 0.2-0.4um
Superior strength chrome-plated rod, anti-corrosion for a long life
High grade ductile iron bar directly machined gland and piston, with high strength
High tensile strength tie rods with rolled threads for durability
Dual base-plate oil ports
100% factory tested under at least 1.5 times of the rated pressure

Materials:
Gland-high grade ductile iron
Tube-high quality steel tube, precision skived and rolled
Tube seal-O-ring with anti-extrusion backup washer
Tie rod-high tensile hardened steel
Rod-chrome plated C45 steel
Rod clevis-high grade ductile iron
End cap-high grand ductile iron
Piston-high grade ductile iron, precision machined
Piston seal-crown seal or glass filled nylon wear ring
Rod wiper-metal encased nitrile rubber
Rod seal-urethane
Ports-NPT(SAE optional)
Colors-red, gloss black, or as required
