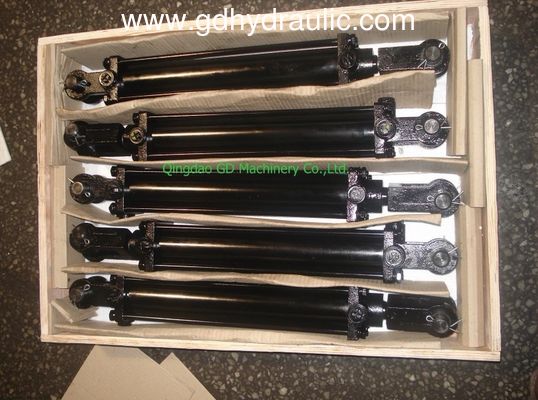

nitrogen treatment Tie-rod hydraulic cylinders

nitrogen treatment Tie-rod hydraulic cylinders

nitrogen treatment Tie-rod hydraulic cylinders

Large Image :  nitrogen treatment Tie-rod hydraulic cylinders Get Best Price

Product Details:
Place of Origin: China
Brand Name: GD
Certification: ISO ROSH CE
Model Number: tie-rod cylinder
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 30-50$
Packaging Details: Exported case
Delivery Time: 25 work days
Payment Terms: T/T LC
Supply Ability: 1000 units per month
Detailed Product Description

nitrogen treatment Tie-rod hydraulic cylinders

STRUCTURE AND MATERIALS



Part no. Bore size Stroke Rod Column Estimate
load ship Wt.(lbs.)
2T2008 2" 8" 1 1/8" 2500PSI 19.1
2T2508 2.5" 8" 1 1/8" 2500PSI 22.5
2T3008 3" 8" 1 1/4" 2500PSI 26.7
2T3016 3" 16" 1 3/8" 2500PSI 24.5
2T3508 3.5" 8" 1 1/4" 2500PSI 36.0
2T3516 3.5" 16" 1 1/2" 2500PSI 46.1
2T4008 4" 8" 1 1/2" 2500PSI 38.0
2T4016 4" 16" 1 3/4" 2500PSI 55.2
2T5008 5" 8" 1 1/2" 2500PSI 48.5
2T5016 5" 16" 2" 2500PSI 63.8

Gland
-- High grade ductile iron
Piston
-- High grade precisely machined ductile iron
Tube
-- Cold Drawn tubing with precision skived
Piston seal
-- O-ring supported by Teflon coating
Tube Seal
-- O-Ring with anti-extrusion backup washer
Piston Wear Ring (only for 3T series)
-- Glass fiber with nylon(only for 3T series)
Tie rod
-- High tense steel ,with nitrogen threatment.Anti rust in salt environment.
Rod wiper
 -- Metal encased NBR
Rod
-- Chrome Plated C1045 Steel
Rod Seal
 -- Polyurethane U-Cup
Rod clevis
-- Ductile iron
Ports
 -- NPTF for 2T, SAE ORB for 3T
End caps
-- C1045 Steel
