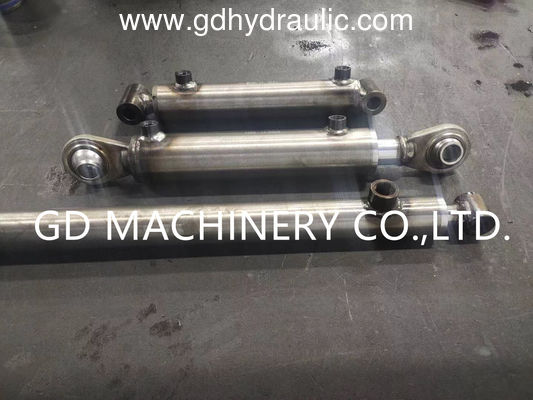

Doube acting top link hydraulic cylinder

Doube acting top link hydraulic cylinder

Doube acting  top link hydraulic cylinder
Doube acting  top link hydraulic cylinder Doube acting  top link hydraulic cylinder Doube acting  top link hydraulic cylinder Doube acting  top link hydraulic cylinder Doube acting  top link hydraulic cylinder Doube acting  top link hydraulic cylinder

Large Image :  Doube acting top link hydraulic cylinder Get Best Price

Product Details:
Place of Origin: China
Brand Name: GD
Certification: ISO
Model Number: TOP LINK
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 50
Packaging Details: Carton box and polywood
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 200000/year
Detailed Product Description
Standard Or Nonstandard: Standard Power: Hydraulic
Structure: Piston Cylinder Working Pressure: 3000PSI
Usage: Hydraulic Cylinder Packing: Cylinder Use Plywood Case,According To Your Requests
Seals: Parker,etc.,Halite Type: Double Acting Hydraulic Cylinder

Hydraulic top link
The hydraulic top link is a conventional double-acting hydraulic cylinder with welded mounting connections between the tractor and the tractor attachment. Hydraulic drawbars are corrosion protected by galvanizing. All hydraulic drawbars also have a valve block installed, which serves for safety (in case of damage to the hydraulic hose, the drawbar cylinder remains in the same place, consequently also the tractor connection). The block valve also serves to ensure that the hoses are not under pressure and thus does not load the hydraulic valve on the tractor due to vibrations while driving.
Doube acting  top link hydraulic cylinder 0

Three most common types:

- standard top link
(has a welded eye bearing on both sides)


- automatic top link with hook
(the piston rod has an automatic quick-release ball hook for the tractor attachment)


- special top link with hook
(it is an automatic drawbar, which has a special hook welded on the cylinder instead of an eye bearing, which enables the bigger movement of the drawbar in the left or right direction),


Use:

Hydraulic top links or hydraulic drawbars are increasingly indispensable for any tractor, especially for plows, where precise plow adjustment is possible. Or planing boards for snow and earth, where it is possible to perform the inclination of the board with a hydraulic pull. It is especially useful in tractor forklifts where it is used for tilting or at plateaus even for dumping cargo.

Hydraulic top links are intended to use on tractors:

Zetor, Fendt, Deutz Fahr, Massey Ferguson, Fiat, John Deere, Case ihc, Renault, IMT, Ursus, Steyer, Hürlimann, Lamborghini, Same, Landini, Valtra, Class, New Holland. Caterpillar, Bobcat, Volvo, Carraro, Yanmar, TV, Store, Lindner, Eicher,



Doube acting  top link hydraulic cylinder 1
